  11. One-Hole Compression Lug, 400 kcmil Max, 1/2 in Stud, Long Barrel, Copper, None

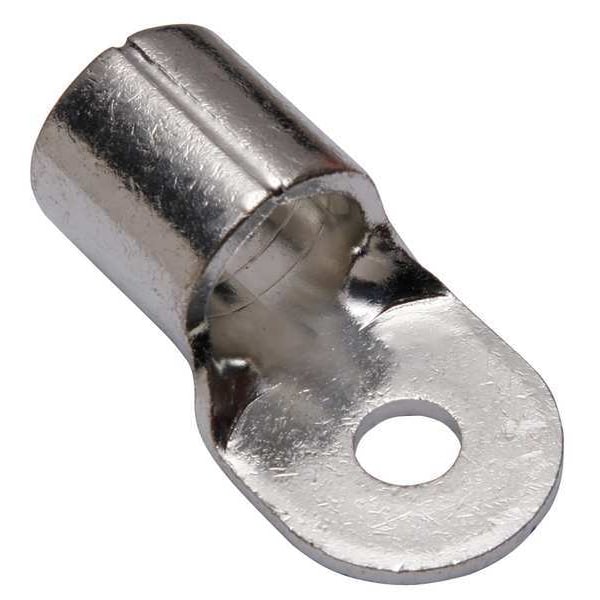

Burndy One-Hole Compression Lug, 400 kcmil Max, 1/2 in Stud, Long Barrel, Copper, None YAD33M12E12 - main

One-Hole Compression Lug, 400 kcmil Max, 1/2 in Stud, Long Barrel, Copper, None

  • Mfr # YAD33M12E12

  • Zoro # G6088485

product price: $44.49
/ea

Key Features

Cable Size
400 Kcmil to 450 kcmil
Connector Type
YAD
Width
1-1/2"
Material
Copper
Length
2.95"
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
YAD33M12E12
Zoro #
G6088485
UPC #
781810668528
Country of Origin
Taiwan, Province of China

Dimensions

Cable Size
400 Kcmil to 450 kcmil
Width
1-1/2"
Length
2.95"
Barrel Length
1.26 in
Overall Length
3.01 in
Tongue Width - Wire Connector
1.5 in
Strip Length
1 3/8 in
Hole Diameter
0.51 in
Tongue Width
1.50 in
Barrel Size
Long
Tongue Thickness
0.16 in
Tongue Length
1.75 in
Barrel Outside Diameter
1.24 in
For Wire Size
400 kcmil
Maximum Wire Size
450 kcmil
Minimum Wire Size
400 kcmil
Conductor - Copper Str Size Range
400-450 kcmil
Dimension - Pad Width inch
1.50 in
Dimension - Hole Size inch
0.51 in
Conductor - Copper Str Size
400 kcmil;450 kcmil
Dimension - Outside Diameter inch
1.24 in
Dimension - Strip Length inch
39450
Dimension - L Length Overall mm
76 mm
Dimension - Bolt Size fraction
1 to 2
Dimension - Stud Size inch
1 to 2
Dimension - Length Overall inch
3.01 in
Dimension - B Length inch
1.26 in
For Stud Size
1/2 in

Details

Connector Type
YAD
Material
Copper
Color Code
None
Seam
Brazed
Tongue Style
Ring
Plate Material
Tin
Item
One-Hole Compression Lug
Insulation Type
Non-Insulated
Max. Voltage
600 V
Peep Hole
No
Wire Range
450 kcmil
Connection Material
Tin Plater Copper
Max. Temp.
302 Degrees F
Insulation Color
Bare
Hole Center to End
2.200"
Standards
UL 467
Seam Style
Brazed
Insulation Coverage
None
Compatible with Series
PAT46, PAT4PC834, PAT750, PAT81KFT, Y46, Y4PC834, Y750, Y81KFT
Maximum Operating Temperature
302 Degrees F
Contact Material
Copper
Barrel Style
Brazed
Termination Style
Crimp
Special Features
Durable Long Lasting Corrosion Resistance, Vibration Resistance and Tensile Strength, Provide Execellent High Conductivity Connections
Terminal Shape
Ring Tongue
Minimum Operating Temperature
302 Degrees F
Insulation Material
None
Compatible with Product Type
Code, Flex Cable
RoHS Compliant
No
Contact Finish
Tin
Hole Spacing
0.94 in
Maximum Voltage
600 V
Item Type
3B
Industry Standard(s)
UL467
Feature - Barrel Type
Long
Plated
Y
Trade Name
HYLUGâ„¢
Conductor Type
CU C Str-SizeCU C Flex-Size
Plating Type
Tin
Application
The YAD uninsulated OEM lug terminal is constructed of electrolytic copper
Physical Attribute - Tongue Type
Ring
Type
Ring Tongue
Voltage - Maximum
600 V
Inspection Hole
No

Description

Ring Terminal, Insulation Color Bare, Insulation Coverage None, Insulation Material None, Maximum Operating Temperature 302 Degrees F, Maximum Voltage 600 V, Minimum Wire Size 400 kcmil, Maximum Wire Size 450 kcmil, Termination Style Crimp, Tongue Width 1.5 in, Contact Finish Tin, Contact Material Copper, Standards UL 467, Barrel Length 1.26 in, Barrel Outside Diameter 1.24 in, Barrel Size Long, Barrel Style Brazed, Compatible Grainger Part Number 22P219, 22P221
