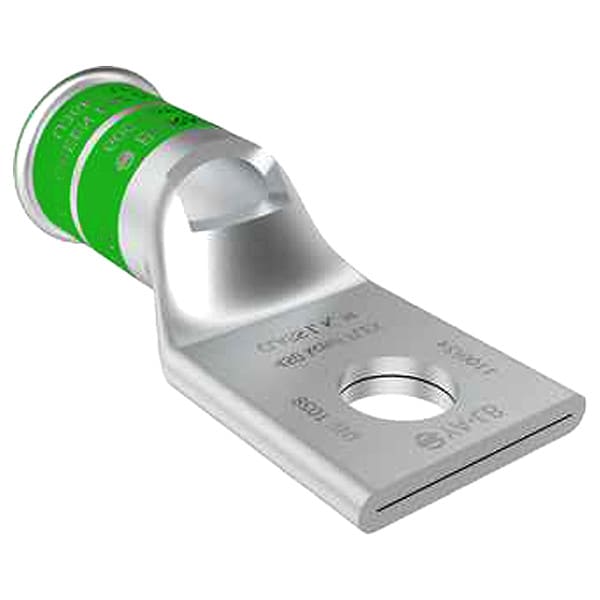

One-Hole Compression Lug, 500 kcmil Max, 5/8 in Stud, Standard Barrel, Copper, Green
- Mfr # YA36LB
- Zoro # G4670197
product price:Â
$
73.69
/ea
Key Features
For Wire Size
500 kcmil
For Conductor Material
Copper
For Stud Size
5/8 in
Material
Copper
Barrel Size
Standard
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- YA36LB
- Zoro #
- G4670197
- UPC #
- 781810556061
- Country of Origin
- United States
Dimensions
- For Wire Size
- 500 kcmil
- For Stud Size
- 5/8 in
- Barrel Size
- Standard
- Tongue Width
- 1.69 in
- Barrel Length
- Short
- Cable Size
- 450 kcmil
- Length
- 3.83"
- Width
- 1.69"
- Length (Straight Wireway)
- 3.83 in
- Dimension - B Length fraction
- 1-11/16 in
- Dimension - Hole Size inch
- 0.69 in
- Dimension - Outside Diameter inch
- 1.19 in
- Conductor Size
- 500 KCMIL
- Conductor - Copper Flex K Size
- 450 kcmil
- Conductor - Copper DLO Size
- 444.4 (1100/#24) DLO
- Dimension - Length Overall inch
- 3.83 in
- Dimension - L Length Overall mm
- 97 mm
- Conductor - Copper Flex H Size Range
- 500 kcmil
- Dimension - Bolt Hole Size inch
- 0.66 in
- Conductor - Copper Flex I Size
- 450 kcmil
- Conductor - Copper Flex M Size Range
- 450 kcmil
- Dimension - N inch
- 0.88 in
- Dimension - Hole Size mm
- 18 mm
- Conductor - Copper Str Size Range
- 500 kcmil
- Dimension - B Length inch
- 1.66 in
- Dimension - Z inch
- 0.87 in
- Conductor - Copper Flex G Size Range
- 500 kcmil
- Dimension - Pad Width inch
- 1.69 in
- Conductor - Copper Flex M Size
- 450 kcmil
- Dimension - Hole Size fraction
- 2023-05-08
- Dimension - Strip Length inch
- 37989
- Dimension - Bolt Size inch
- 0.63
- Conductor - Copper Flex K Size Range
- 450 kcmil
- Conductor - Copper DLO Size Range
- 444.4 (1100/#24) DLO
- Conductor - Copper Flex H Size
- 500 kcmil
- Dimension - Stud Size fraction
- 2023-05-08
- Conductor - Copper Flex G Size
- 500 kcmil
- Conductor - Copper Str Size
- 600 kcmil
- Dimension - Bolt Size fraction
- 45054
- Conductor - Copper Flex I Size Range
- 450 kcmil
- For Stranded Copper Wire Size - Minimum
- 500 kcmil
- For Stranded Copper Wire Size - Maximum
- 600 kcmil
Description
One-Hole Lug Compression Connector, Color Code Green, Die Code 1,028, For Stud Size 5/8 in, For Stranded Copper Wire Size - Minimum 500 kcmil, For Stranded Copper Wire Size - Maximum 600 kcmil, Hole Center to Center Not Applicable, Material Copper, Maximum Operating Temperature 194 Degrees F, Standards CSA Certified, UL 486A-486B, UL Listed, Connector Type Belled Straight Barrel
