  11. One-Hole Compression Lug, 6 AWG Max, 1/4 in Stud, Long Barrel, Copper, None, 10 PK

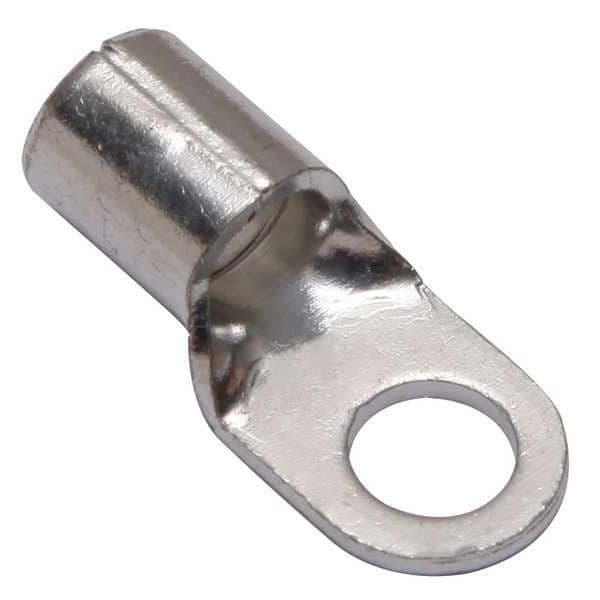

Burndy One-Hole Compression Lug, 6 AWG Max, 1/4 in Stud, Long Barrel, Copper, None, 10 PK YAD6CM6E14 - main

One-Hole Compression Lug, 6 AWG Max, 1/4 in Stud, Long Barrel, Copper, None, 10 PK

  • Mfr # YAD6CM6E14

  • Zoro # G6148922

product price: $10.45
/pk 10, $1.05/ea

Key Features

For Wire Size
6 AWG
For Stud Size
1/4 in
Material
Copper
Barrel Size
Long
Tongue Width
0.43 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
YAD6CM6E14
Zoro #
G6148922
UPC #
781810668696
Country of Origin
Taiwan, Province of China

Dimensions

For Wire Size
6 AWG
For Stud Size
1/4 in
Barrel Size
Long
Tongue Width
0.43 in
Tongue Width - Wire Connector
0.43 in
Barrel Length
0.4 in
Overall Length
1 in
Width
0.43"
Length
1"
Cable Size
6 AWG
Minimum Wire Size
6 AWG
Hole Diameter
0.26 in
Strip Length
1/2 in
Barrel Outside Diameter
0.32 in
Maximum Wire Size
6 AWG
Tongue Length
0.6 in
Tongue Thickness
0.05 in
Dimension - Pad Width inch
0.43 in
Dimension - Bolt Size fraction
2023-01-04
Dimension - B Length inch
0.40 in
Conductor - Copper Str Size
6 AWG
Dimension - Outside Diameter inch
0.32 in
Dimension - Length Overall inch
1.00 in
Conductor Size
6 AWG
Dimension - Strip Length inch
45123
Dimension - Hole Size inch
0.26 in
Dimension - Stud Size inch
44930
Dimension - L Length Overall mm
25 mm

Details

Item
One-Hole Compression Lug
Material
Copper
Inspection Hole
No
Color Code
None
Standards
UL 467
Hole Center to End
0.790"
Plate Material
Tin
Connector Type
YAD
Connection Material
Tin Plater Copper
Insulation Type
Non-Insulated
Seam
Brazed
Wire Range
6 AWG
Insulation Color
Bare
Peep Hole
No
Max. Temp.
302 Degrees F
Max. Voltage
600 V
Tongue Style
Ring
Contact Material
Copper
Maximum Voltage
600 V
Terminal Shape
Ring Tongue
Compatible with Product Type
Code, Flex Cable
Insulation Coverage
None
Minimum Operating Temperature
302 Degrees F
Compatible with Series
PAT4PC834, PAT750, PAT81KFT, Y35, Y39, Y4PC834, Y750, Y81KFT
Contact Finish
Tin
Insulation Material
None
Termination Style
Crimp
Maximum Operating Temperature
302 Degrees F
Barrel Style
Brazed
RoHS Compliant
Yes
Seam Style
Brazed
Hole Spacing
0.39 in
Special Features
Durable Long Lasting Corrosion Resistance, Vibration Resistance and Tensile Strength, Provide Execellent High Conductivity Connections
Compatible Manufacturer Model Number
Y1MRTC
Item Type
3B
Type
Ring Tongue
Voltage - Maximum
600 V
Conductor Type
CU C Str-SizeCU C Flex-Size
Plated
Y
Feature - Barrel Type
Long
Trade Name
HYLUGâ„¢
Application
The YAD uninsulated OEM lug terminal is constructed of electrolytic copper
Plating Type
Tin
Physical Attribute - Tongue Type
Ring
Industry Standard(s)
UL467

Description

Ring Terminal, Insulation Color Bare, Insulation Coverage None, Insulation Material None, Maximum Operating Temperature 302 Degrees F, Maximum Voltage 600 V, Minimum Wire Size 6 AWG, Maximum Wire Size 6 AWG, Termination Style Crimp, Tongue Width 0.43 in, Contact Finish Tin, Contact Material Copper, Standards UL 467, Barrel Length 0.4 in, Barrel Outside Diameter 0.32 in, Barrel Size Long, Barrel Style Brazed, Compatible Grainger Part Number 22P158, 22P219, 22P221
