  11. One-Hole Compression Lug, 750 kcmil Max, 5/8 in Stud, Standard Barrel, Copper, White

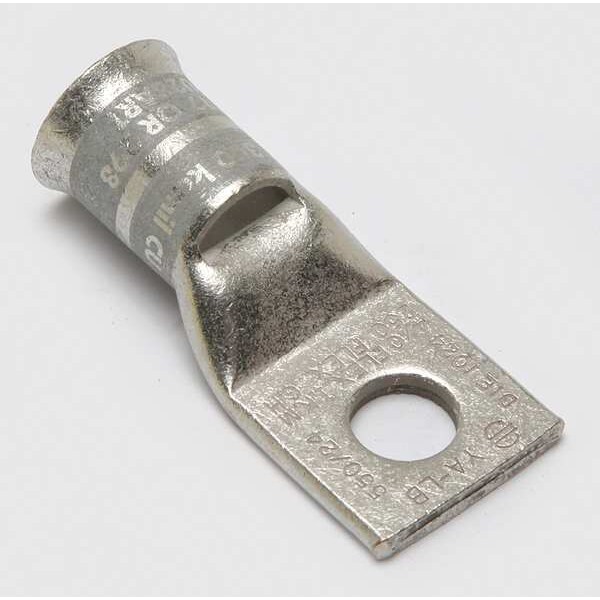

Burndy One-Hole Compression Lug, 750 kcmil Max, 5/8 in Stud, Standard Barrel, Copper, White YA44LB - main

One-Hole Compression Lug, 750 kcmil Max, 5/8 in Stud, Standard Barrel, Copper, White

  • Mfr # YA44LB

  • Zoro # G4683585

product price: $132.99
/ea
Free Shipping & Returns

Key Features

For Wire Size
750 kcmil
For Conductor Material
Copper
For Stud Size
5/8 in
Material
Copper
Barrel Size
Standard
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
YA44LB
Zoro #
G4683585
UPC #
781810556016
Country of Origin
United States

Dimensions

For Wire Size
750 kcmil
For Stud Size
5/8 in
Barrel Size
Standard
Tongue Width
2.18 in
Barrel Length
Short
Length
4.82"
Width
2.18"
Cable Size
750 kcmil
Length (Straight Wireway)
4.82 in
Dimension - Stud Size inch
5/8 in
Dimension - Length Overall inch
4.82 in
Dimension - Bolt Size inch
0.63
Dimension - Bolt Hole Size inch
5/8 in
Dimension - N inch
0.66 in
Conductor - Copper DLO Size
777.7 (1925/#24)
Conductor - Copper Flex K Size
600
Conductor - Copper Flex H Size
750
Conductor - Copper Flex G Size
750
Dimension - Outside Diameter inch
1.49 in
Dimension - Z inch
1.34 in
Dimension - Bolt Size fraction
45054
Dimension - B Length inch
1.85 in
Conductor - Copper Str Size
1000 kcmil
Conductor - Copper Str Size Range
1000 kcmil
Conductor - Copper Flex I Size
650
Dimension - Strip Length inch
42384
Dimension - Hole Size inch
0.69 in
Conductor - Copper Solid Size
1000 kcmil
Dimension - Pad Width inch
2.18 in
Dimension - Hole Size fraction
2023-05-08
Dimension - Hole Size mm
17.5 mm
Dimension - L Length Overall mm
122.4 mm
Dimension - Stud Size fraction
2023-05-08
Conductor Size
750 KCMIL
Dimension - Thread Size
5/8 in

Details

Item
One-Hole Compression Lug
For Conductor Material
Copper
Material
Copper
Tongue Angle
Straight
Inspection Hole
Yes
Die Code
1,032
Color Code
White
Standards
CSA Certified, UL 486A-486B, UL Listed
Tongue Style
Standard
Hole Center to End
0.94 in
Connector Type
Standard Barrel
Peep Hole
Yes
Plate Material
Electro Tin
Application
For Flex Conductor
Voltage - Maximum
35000
Physical Attribute - Number of Holes
1
Plated
Y
Physical Attribute - Tongue Angle
Straight
Rating - KVA
35 kV
Trade Name
HYLUGâ„¢
UL Listed
Yes
Type
Standard Barrel, Tin Plated
Certification - CSA Approved
Yes
Finish Type
Tin-Plated
Feature - Barrel Style
ChamferedSkived
Rating - Minimum Voltage
600
Conductor Type
FLEX
Die Index
1032
Industry Standard(s)
UL468A-468B
Conductor - Material
Copper
Voltage Rating
35 kV
Feature - Barrel Type
Standard
Plating Type
Tin -Plated
Physical Attribute - Tongue Type
Straight
Number of Holes
1

Description

One-Hole Lug Compression Connector, Color Code White, Die Code 1,032, For Stud Size 5/8 in, Hole Center to Center Not Applicable, Material Copper, Maximum Operating Temperature 194 Degrees F, Standards CSA Certified, UL 486A-486B, UL Listed, Connector Type Belled Straight Barrel
