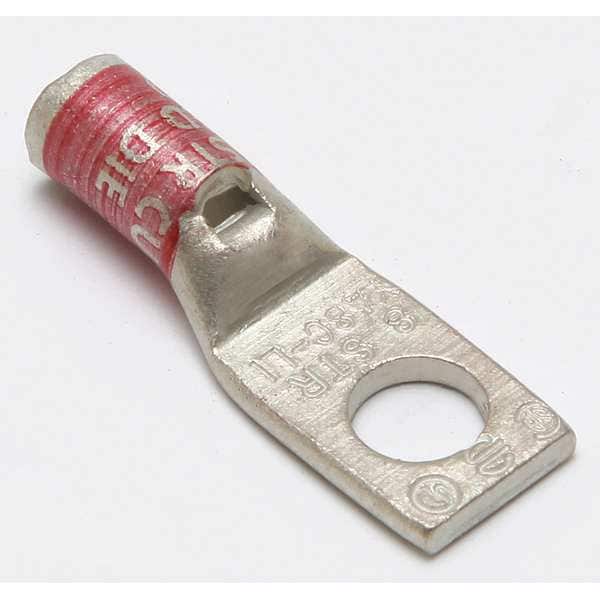

One-Hole Compression Lug, 8 AWG Max, #6 Stud, Standard Barrel, Copper, Red
Mfr # YA8CLNT6
Zoro # G4701417
product price: $10.75
/eaKey Features
For Wire Size
8 AWG
For Conductor Material
Copper
For Stud Size
#6
Material
Copper
Barrel Size
Standard
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
YA8CLNT6
Zoro #
G4701417
UPC #
781810559840
Country of Origin
United States
Dimensions
For Wire Size
8 AWG
For Stud Size
#6
Barrel Size
Standard
Tongue Width
0.29 in
Barrel Length
Short
Cable Size
8 AWG
Length
1.08"
Width
0.29"
Overall Width
0.29 in
Overall Length
1.08 in
Length (Straight Wireway)
1.09 in
Barrel Outside Diameter
0.27 in
For Stranded Copper Wire Size - Minimum
8 AWG
Strip Length
1/2 in
Tongue Length
0.41 in
For Stranded Copper Wire Size - Maximum
8 AWG
Hole Size
0.15 in
Tongue Thickness
0.09 in
Dimension - D inch
0.41 in
Dimension - B Length inch
0.44 in
Conductor - Copper Solid Size
6 Sol-8 Sol
Dimension - Outside Diameter inch
0.27 in
Dimension - Hole Size fraction
#6
Dimension - L Length Overall mm
27 mm
Conductor Size
8 AWG
Conductor - Copper Str Size Range
8 AWG
Dimension - N inch
0.19 in
Dimension - Hole Size mm
4 mm
Conductor - Copper Str Navy Size
23
Dimension - Length Overall inch
1.08 in
Conductor - Copper Flex I Size
"8 AWG"
Conductor - Copper Flex G Size
"8 AWG"
Dimension - Inside Diameter inch
0.18 in
Conductor - Copper Flex M Size
"8 AWG"
Dimension - Z inch
0.22 in
Conductor - Copper Str Size
8 AWG
Conductor - Copper Flex H Size
"8 AWG"
Conductor - Copper Str Compact Size
"8 AWG"
Dimension - Stud Size fraction
#6
Conductor - Copper DLO Size
8 AWG
Dimension - Bolt Size fraction
#6
Dimension - Strip Length inch
1 to 2
Dimension - Stud Size inch
#6
Conductor - Copper Flex K Size
"8 AWG"
Dimension - Hole Size inch
0.16
Dimension - B Length fraction
7/16 in
Dimension - Pad Width inch
0.29 in
Description
Compression Lug, Barrel Size Standard, Color Code Red, Die Code 49, Tongue Angle Straight, Tongue Width 0.29 in, For Conductor Material Copper, For Stud Size #6, For Stranded Copper Wire Size - Minimum 8 AWG, For Stranded Copper Wire Size - Maximum 8 AWG, Inspection Hole Yes, Hole Center to Center Not Applicable, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV, Termination Style Crimp, Standards CSA Certified, UL 486A-486B, UL Listed, Number of Holes 1
