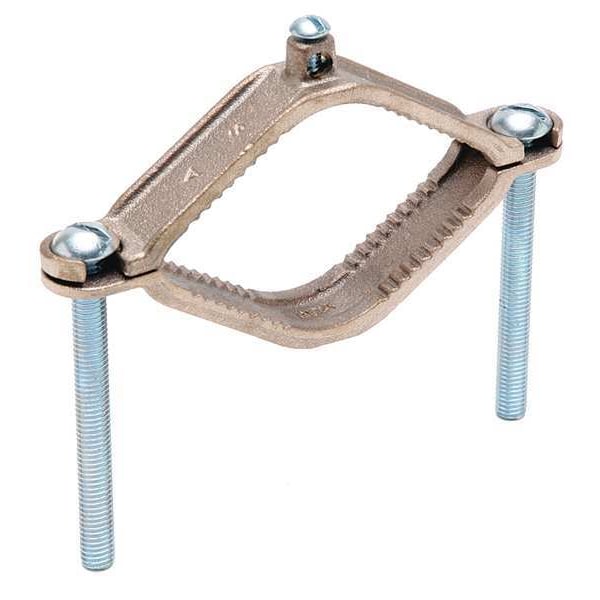

Pipe Ground Clamp, 10AWG, 6.25In
Mfr # C4
Zoro # G4680015
product price: $38.35
/eaKey Features
Item - Grounding Connector
Grounding Connector
Type - Grounding Connector
Mechanical
Type
COMMERCIAL
Wire Size - Grounding
10 to 2 AWG
Material
Bronze
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
C4
Zoro #
G4680015
UPC #
781810142325
Country of Origin
India
Dimensions
Wire Size - Grounding
10 to 2 AWG
Rod Dia.
1/2" to 4" Pipe
Conductor Size
2 AWG to 10 AWG
Grounding Wire Size
10 to 2 AWG SOL, 10 to 2 AWG STR
Overall Length
6 1/4 in
Overall Height
4 1/8 in
For Maximum Pipe Size
4 in
For Minimum Ground Conductor Wire Size
10 AWG SOL
For Minimum Pipe Size
2 1/2 in
Overall Width
31/32 in
For Maximum Ground Conductor Wire Size
2 AWG STR
Conductor - Copper Solid Size Range
10 AWG-2 AWG
Dimension - Width mm
24 mm
Conductor - Copper Str Size
10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG
Dimension - Length Overall inch
6.25 in
Conductor - Pipe EMT Size Range
2 1/2 in-4 in
Dimension - L Length Overall mm
159 mm
Dimension - Hole Size inch
0.31 in
Dimension - Height inch
4.13 in
Conductor - Pipe EMT Size
2 1/2 in;3 in;3 1/2 in;4 in
Conductor - Copper Str Size Range
10 AWG-2 AWG
Dimension - Hole Size mm
8 mm
Dimension - Width inch
0.96 in
Dimension - Pad Width inch
1.88 in
Conductor - Copper Solid Size
10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG
Description
Grounding Connector, Grounding Wire Size 10 to 2 AWG SOL, 10 to 2 AWG STR, Material Bronze, Number of Wires - Grounding 1, For Maximum Ground Conductor Wire Size 2 AWG STR, For Minimum Ground Conductor Wire Size 10 AWG SOL, For Use With Copper Conductor, Copper Tube, Pipe, Water Pipe, Grounding Wires Connected To 2 1/2 in to 4 in Pipe, Standards UL Listed, UL467, Type - Grounding Connector Mechanical, Accessory Type Ground Clamp, For Maximum Pipe Size 4 in, For Minimum Pipe Size 2 1/2 in
