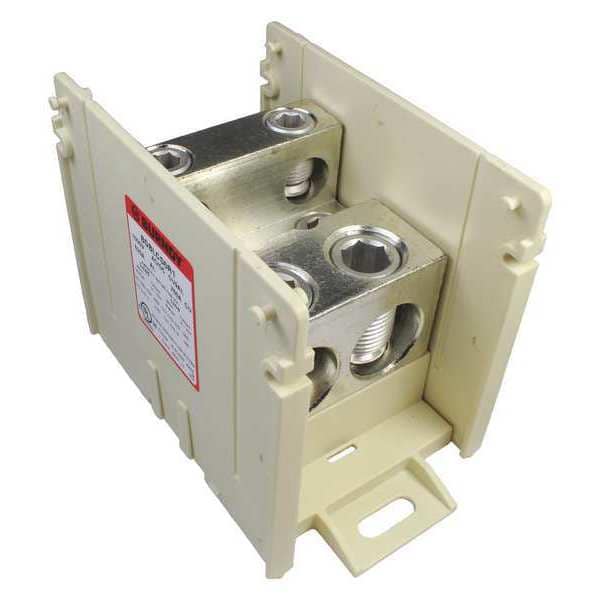

Power Distribution Block, Open, 1 Pole, 760 A Copper, 600 V AC/DC

  • Mfr # BDBLCS6R1

  • Zoro # G3111711

product price:  $110.99
/ea
Free Shipping & Returns

Key Features

Power Distribution Block Design
Open
For Conductor Material
Aluminum, Copper
Maximum Current - Copper Conductor
760 A
Maximum Current - Aluminum Conductor
760 A
Maximum Voltage
600 V AC/DC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
BDBLCS6R1
Zoro #
G3111711
UPC #
781810675595
Country of Origin
United States

Dimensions

Length
3.25 in
Depth
4.15 in
Overall Width
3.6 in
For Load Copper Wire Size - Maximum
4/0 AWG
For Load Aluminum Wire Size - Minimum
6 AWG
For Line Copper Wire Size - Maximum
500 kcmil
Overall Depth
4.25 in
For Line Copper Wire Size - Minimum
4 AWG
For Line Aluminum Wire Size - Maximum
500 kcmil
Overall Length
5.76 in
For Load Copper Wire Size - Minimum
6 AWG
For Load Aluminum Wire Size - Maximum
4/0 AWG
For Line Aluminum Wire Size - Minimum
4 AWG
Wire Rope Length
5.76 in

Details

Item
Power Distribution Block
Power Distribution Block Design
Open
For Conductor Material
Aluminum, Copper
Maximum Current - Copper Conductor
760 A
Maximum Current - Aluminum Conductor
760 A
Maximum Voltage
600 V AC/DC
Number of Poles
1
Line Connections/Pole
2
Load Connections/Pole
4
Line Side Connection Type
Lug
Load Side Connection Type
Lug
Terminal Material
Aluminum; Copper
Housing Material
Nylon
Maximum Operating Temperature
194 Degrees F
Max. Amps
760 A
Standards
cULus Certified, RoHS Compliant
Housing Color
Natural
Number of Circuits
1
UL 94 Flammability Rating
V-0
Special Features
Provided Capability to Create as Many Poles as Required, Up to 30 Tap Conductor Accommodated
Application
VERSI-POLE Power Distribution Blocks are designed to provide modular solutions to power distribution applications.
Features
Insulated
Insulation
Y
Plated
Yes
Plating Type
Tin
Conductor Type
AL C Str-RunCU C Str-RunAL C Str-TapCU C Str-Tap
Primary Wire Range
4 AWG to 500 kcmil
Secondary Wire Range
6 to 4/0 AWG

Description

Power Distribution Block, For Conductor Material Aluminum, Copper, Line Connections/Pole 2, Line Side Stud Size Not Applicable, For Line Copper Wire Size - Minimum 4 AWG, For Line Copper Wire Size - Maximum 500 kcmil, Load Connections/Pole 4, Load Side Stud Size Not Applicable, For Load Copper Wire Size - Minimum 6 AWG, For Load Copper Wire Size - Maximum 4/0 AWG, Maximum Current - Copper Conductor 760 A, Maximum Voltage 600 V AC/DC, Mounting Type DIN-Rail, Surface Mount, Number of Poles 1
