  11. Two-Hole Compression Lug, 2/0 AWG Max, 1/4 in Stud, Standard Barrel, Copper, Black

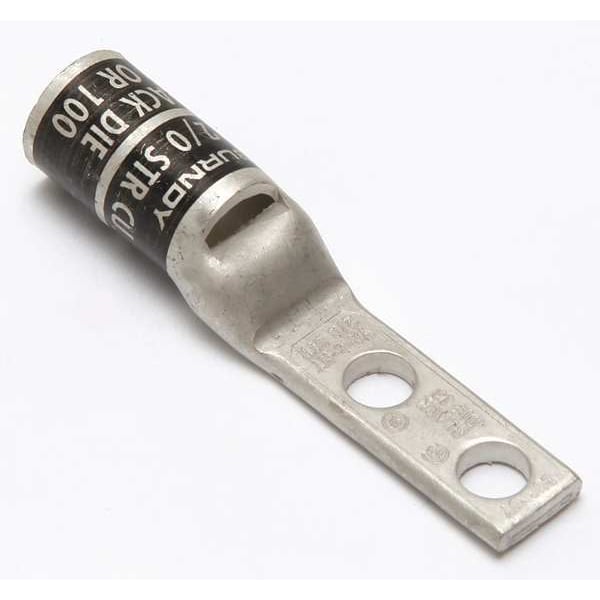

Burndy Two-Hole Compression Lug, 2/0 AWG Max, 1/4 in Stud, Standard Barrel, Copper, Black YA26L2NT14 - main

Two-Hole Compression Lug, 2/0 AWG Max, 1/4 in Stud, Standard Barrel, Copper, Black

  • Mfr # YA26L2NT14

  • Zoro # G4662445

product price: $16.59
/ea

Key Features

Cable Size
2/0 AWG
Connector Type
Standard Barrel
Width
0.48"
Material
Copper
Length
2.66"
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
YA26L2NT14
Zoro #
G4662445
UPC #
781810559826
Country of Origin
United States

Dimensions

Cable Size
2/0 AWG
Width
0.48"
Length
2.66"
Barrel Length
Short
Overall Width
0.48 in
Overall Length
2.66 in
Length (Straight Wireway)
2.66 in
For Stud Size
1/4 in
Tongue Thickness
0.12 in
For Stranded Copper Wire Size - Maximum
2/0 AWG
Barrel Outside Diameter
0.56 in
Strip Length
1 in
Hole Size
0.27 in
Tongue Length
0.49 in
For Wire Size
2/0 AWG
For Stranded Copper Wire Size - Minimum
2/0 AWG
Tongue Width
0.48 in
Barrel Size
Standard
Conductor - Copper Str Navy Size
125 (61) Navy
Dimension - Stud Size inch
44930
Dimension - Hole Size fraction
2023-01-04
Dimension - Bolt Hole Size inch
0.27 in
Dimension - Stud Size fraction
2023-01-04
Dimension - Hole Size inch
0.27
Dimension - Bolt Size fraction
44930
Conductor Size
2/0 AWG
Dimension - Length Overall inch
2.66 in
Dimension - Hole Size mm
6.9 mm
Conductor - Copper Str Size Range
2/0 AWG
Conductor - Copper Str Navy Size Range
125 (61) Navy
Dimension - D inch
1.22 in
Dimension - Bolt Size inch
0.25
Conductor - Copper Str Size
2/0 AWG
Dimension - B Length fraction
15/16 in
Dimension - B Length inch
0.94 in
Dimension - N inch
0.25 in
Dimension - Pad Width inch
0.48 in
Dimension - L Length Overall mm
68 mm
Dimension - Z inch
0.24 in
Dimension - Strip Length inch
1 in
Dimension - Outside Diameter inch
0.56 in

Details

Connector Type
Standard Barrel
Material
Copper
Color Code
Black
Plate Material
Electro Tin
Standards
CSA Certified, UL 486A-486B, UL Listed
Hole Center to End
0.25 in
Die Code
13
Lug Compression Connector Type
Two-Hole Lug Compression Connector
Tongue Style
Narrow
Item
Two-Hole Compression Lug
Peep Hole
Yes
Hole Center to Center
0.625 in
Application
For Code Conductor
Special Features
Barrel is Designed with an Internal Chamfer at the Wire Entry to Ensure Smooth Insertion of the Wire, Preventing Possible Damaging of the Strands, Electro-Tin Plated Unless Otherwise Specified to Reduce Galvanic Corrosion (Bimetallic) and Resist Corrosive Elements, Un-Insulated Compression Narrow Tongue Terminal, Up to 35 Kv
Termination Style
Crimp
Maximum Voltage
35 kV AC
For Wire Type
Stranded
Contact Finish
Tin
For Conductor Material
Copper
RoHS Compliant
Yes
Barrel Style
Chamfered
Inspection Hole
Yes
Maximum Operating Temperature
194 Degrees F
Tongue Angle
Straight
Conductor - Material
COPPER
Plated
Y
Physical Attribute - Tongue Angle
Straight
Voltage - Maximum
35000
Die Index
13
Feature - Barrel Style
Chamfered
Type
YA-L-2NT
Certification - CSA Approved
Yes
Finish Type
Tin-Plated
Conductor Type
CODE
UL Listed
Yes
Trade Name
HYLUGâ„¢
Voltage Rating
35 kV
Physical Attribute - Number of Holes
2
Rating - Minimum Voltage
600
Feature - Barrel Type
Standard
Rating - KVA
35 kV
Plating Type
Tin - Electro Plated
Industry Standard(s)
UL 486A-486B
Number of Holes
2

Description

Compression Lug, Barrel Size Standard, Color Code Black, Die Code 13, Tongue Angle Straight, Tongue Width 0.48 in, For Conductor Material Copper, For Stud Size 1/4 in, For Stranded Copper Wire Size - Minimum 2/0 AWG, For Stranded Copper Wire Size - Maximum 2/0 AWG, Inspection Hole Yes, Hole Center to Center 0.625 in, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV, Termination Style Crimp, Standards CSA Certified, UL 486A-486B, UL Listed, Number of Holes 2
