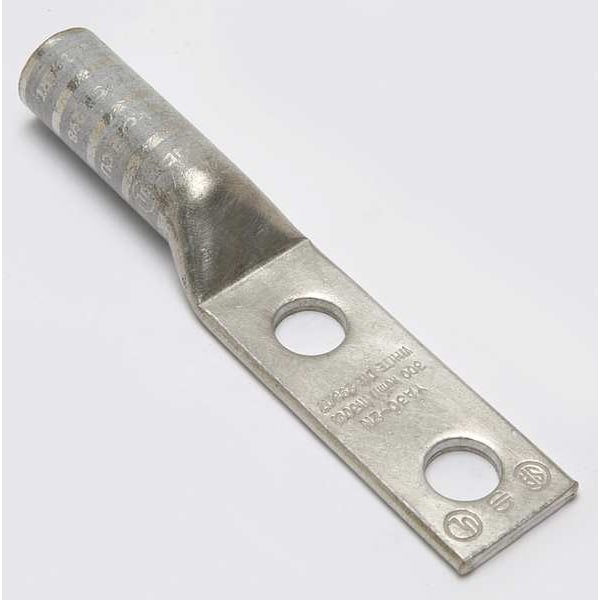

Two-Hole Compression Lug, 300 kcmil Max, 1/2 in Stud, Long Barrel, Copper, White
Mfr # YA302N
Zoro # G4694426
product price:Â $28.49
/eaKey Features
For Wire Size
300 kcmil
For Conductor Material
Copper
For Stud Size
1/2 in
Material
Copper
Barrel Size
Long
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- YA302N
- Zoro #
- G4694426
- UPC #
- 781810555613
- Country of Origin
- United States
Dimensions
- For Wire Size
- 300 kcmil
- For Stud Size
- 1/2 in
- Barrel Size
- Long
- Tongue Width
- 1.2 in
- Length
- 5.64"
- Barrel Length
- Long
- Cable Size
- 300 kcmil
- Width
- 1.2"
- Overall Width
- 1.2 in
- Overall Length
- 5.64 in
- Length (Straight Wireway)
- 5.64 in
- For Stranded Copper Wire Size - Maximum
- 300 kcmil
- For Stranded Copper Wire Size - Minimum
- 300 kcmil
- Tongue Length
- 1.27 in
- Tongue Thickness
- 0.16 in
- Hole Size
- 0.56 in
- Barrel Outside Diameter
- 0.81 in
- Strip Length
- 2 1/16 in
- Dimension - L Length Overall mm
- 143 mm
- Dimension - N inch
- 0.63 in
- Conductor - Copper Str Size
- 300 kcmil
- Dimension - Length Overall inch
- 5.64 in
- Dimension - Strip Length inch
- 42401
- Dimension - Bolt Size fraction
- 1 to 2
- Dimension - Hole Size mm
- 14 mm
- Conductor - Copper Str Navy Size
- 300 (91) Navy
- Conductor Size
- 300 KCMIL
- Dimension - B Length inch
- 2.00 in
- Dimension - Stud Size fraction
- 1 to 2
- Dimension - Stud Size inch
- 1 to 2
- Dimension - Z inch
- 0.64 in
- Dimension - Hole Size inch
- 0.56 in
- Dimension - Thread Size
- 1 to 2
- Conductor - Copper Str Size Range
- 300 kcmil
- Dimension - Bolt Size inch
- 0.5
- Dimension - Outside Diameter inch
- 0.81 in
- Dimension - Bolt Hole Size inch
- 0.52 in
- Dimension - Hole Size fraction
- 1 to 2
- Dimension - Pad Width inch
- 1.20 in
- Wire Rope Length
- 5.64 in
Description
Compression Lug, Barrel Size Long, Color Code White, Die Code 17, 298, Tongue Angle Straight, Tongue Width 1.2 in, For Conductor Material Copper, For Stud Size 1/2 in, For Stranded Copper Wire Size - Minimum 300 kcmil, For Stranded Copper Wire Size - Maximum 300 kcmil, Inspection Hole No, Hole Center to Center 1.75 in, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV, Termination Style Crimp, Standards CSA Certified, UL 486A-486B, UL Listed, Number of Holes 2
