  11. Two-Hole Compression Lug, 4/0 AWG Max, 3/8 in Stud, Long Barrel, Copper, Purple

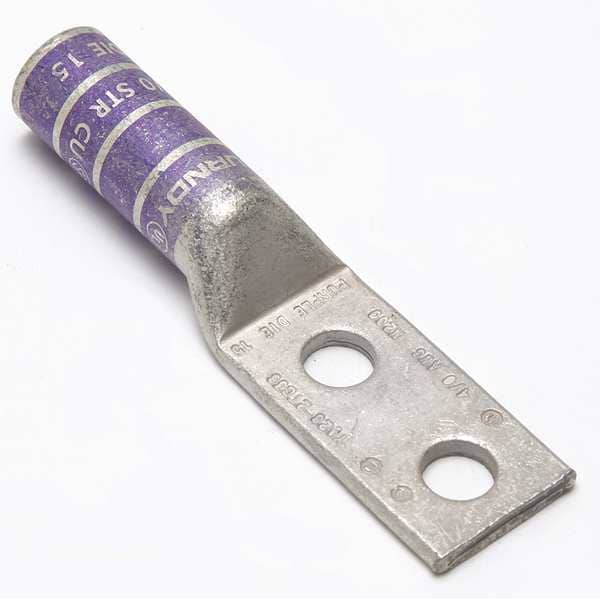

Burndy Two-Hole Compression Lug, 4/0 AWG Max, 3/8 in Stud, Long Barrel, Copper, Purple YA282TC38 - main

CAD Drawings

Download CAD Files

Two-Hole Compression Lug, 4/0 AWG Max, 3/8 in Stud, Long Barrel, Copper, Purple

  • Mfr # YA282TC38

  • Zoro # G4696185

CAD Available
product price: $18.85
/ea

Key Features

CAD Drawing
For Wire Size
4/0 AWG
For Conductor Material
Copper
For Stud Size
3/8 in
Material
Copper
Barrel Size
Long
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
YA282TC38
Zoro #
G4696185
UPC #
781810555736
Country of Origin
United States

Dimensions

For Wire Size
4/0 AWG
For Stud Size
3/8 in
Barrel Size
Long
Tongue Width
1.02 in
Barrel Length
Long
Cable Size
4/0 AWG
Length
3.99"
Width
1.02"
Overall Width
1.01 in
Overall Length
3.99 in
Length (Straight Wireway)
3.99 in
For Stranded Copper Wire Size - Minimum
4/0 AWG
Hole Size
0.4 in
Tongue Thickness
0.14 in
For Stranded Copper Wire Size - Maximum
4/0 AWG
Barrel Outside Diameter
0.69 in
Strip Length
1 11/16 in
Tongue Length
0.84 in
Dimension - Strip Length inch
42380
Conductor - Copper Str Size Range
4/0 AWG
Dimension - Stud Size fraction
2023-03-08
Dimension - Bolt Size inch
0.38
Dimension - Z inch
0.43 in
Dimension - Outside Diameter inch
0.69 in
Dimension - L Length Overall mm
101 mm
Dimension - Bolt Size fraction
44993
Dimension - B Length inch
1.62 in
Dimension - Pad Width inch
1.02 in
Conductor - Copper Solid Size
4/0 AWG
Dimension - Length Overall inch
3.99 in
Dimension - Hole Size mm
10 mm
Dimension - Bolt Hole Size inch
0.39 in
Dimension - B Length fraction
39452
Conductor Size
4/0 AWG
Conductor - Copper Solid Size Range
4/0 AWG
Dimension - Thread Size
44993
Dimension - Stud Size inch
44993
Conductor - Copper Str Size
4/0 AWG
Dimension - Hole Size fraction
2023-03-08
Conductor - Copper Str Navy Size
200 (61) Navy
Dimension - N inch
0.41 in
Dimension - Hole Size inch
0.4 in

Details

Item
Two-Hole Compression Lug
For Conductor Material
Copper
Material
Copper
Tongue Angle
Straight
Inspection Hole
No
Die Code
15
Color Code
Purple
Standards
CSA Certified, UL 486A-486B, UL Listed
Peep Hole
No
Hole Center to End
0.41 in
Connector Type
Long Barrel
Hole Center to Center
1 in
Plate Material
Electro Tin
Lug Compression Connector Type
Two-Hole Lug Compression Connector
Tongue Style
Standard
Application
For Code Conductor
RoHS Compliant
Yes
For Wire Type
Stranded
Special Features
Corrosion Resistant, Non-Insulated Construction
Termination Style
Crimp
Maximum Voltage
35 kV AC
Contact Finish
Tin
Barrel Style
Chamfered
Maximum Operating Temperature
194 Degrees F
Trade Name
HYLUGâ„¢
Plated
Y
Type
Long Barrel, Tin Plated
UL Listed
Yes
Plating Type
Tin plated
Die Index
15
Industry Standard(s)
UL468A-468B
Rating - Minimum Voltage
600
Finish Type
Tin-Plated
Voltage - Maximum
35000
Voltage Rating
35 kV
Conductor Type
CODE
Physical Attribute - Tongue Type
Straight
Physical Attribute - Number of Holes
2
Rating - KVA
35 kV
Feature - Barrel Style
Chamfered
Conductor - Material
Copper
Feature - Barrel Type
Long
Physical Attribute - Tongue Angle
Straight
Certification - CSA Approved
Yes
Number of Holes
2
CAD Available
Yes

Description

Compression Lug, Barrel Size Long, Color Code Purple, Die Code 15, Tongue Angle Straight, Tongue Width 1.02 in, For Conductor Material Copper, For Stud Size 3/8 in, For Stranded Copper Wire Size - Minimum 4/0 AWG, For Stranded Copper Wire Size - Maximum 4/0 AWG, Inspection Hole No, Hole Center to Center 1 in, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV, Termination Style Crimp, Standards CSA Certified, UL 486A-486B, UL Listed, Number of Holes 2
