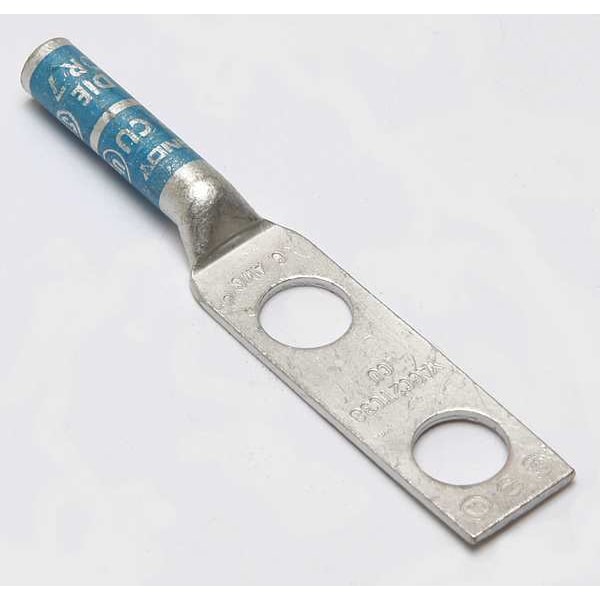

Two-Hole Compression Lug, 6 AWG Max, 3/8 in Stud, Long Barrel, Copper, Blue
Mfr # YA6C2TC38
Zoro # G4655472
CAD Available
product price: $10.15
/eaKey Features
CAD Drawing
Cable Size
6 AWG
Connector Type
Long Barrel
Width
0.58"
Material
Copper
Length
3.22"
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
YA6C2TC38
Zoro #
G4655472
UPC #
781810555668
Country of Origin
United States
Dimensions
Cable Size
6 AWG
Width
0.58"
Length
3.22"
Barrel Length
Long
Overall Length
3.22 in
Overall Width
0.59 in
Length (Straight Wireway)
3.22 in
For Stud Size
3/8 in
Barrel Outside Diameter
0.29 in
Hole Size
0.41 in
Strip Length
1 3/16 in
For Wire Size
6 AWG
Barrel Size
Long
Tongue Width
0.58 in
For Stranded Copper Wire Size - Maximum
6 AWG
For Stranded Copper Wire Size - Minimum
6 AWG
Tongue Thickness
0.06 in
Tongue Length
0.84 in
Dimension - Hole Size fraction
2023-03-08
Dimension - L Length Overall mm
82
Conductor - Copper Solid Size
6 AWG
Dimension - Bolt Size inch
0.38
Dimension - Stud Size inch
3/8 in
Dimension - Hole Size mm
10
Dimension - Outside Diameter inch
0.29
Conductor - Copper Str Navy Size
30 (19) Navy
Dimension - Hole Size inch
0.41
Dimension - Bolt Size fraction
2023-03-08
Dimension - Stud Size fraction
2023-03-08
Conductor - Copper Str Size Range
6 AWG
Dimension - B Length inch
1.12
Dimension - N inch
0.41
Dimension - Length Overall inch
3.22
Dimension - Z inch
0.43 in
Dimension - Strip Length inch
1-3/16 in
Dimension - Bolt Hole Size inch
0.41
Conductor - Copper Str Size
6 AWG
Conductor Size
6 AWG
Dimension - Pad Width inch
0.58
Conductor - Copper Str Navy Size Range
30 (19) Navy
Description
Two-Hole Lug Compression Connector, Barrel Size Long, Color Code Blue, Die Code 374, 7, Tongue Angle Straight, Tongue Width 0.58 in, For Conductor Material Copper, For Stud Size 3/8 in, For Stranded Copper Wire Size - Minimum 6 AWG, For Stranded Copper Wire Size - Maximum 6 AWG, Inspection Hole No, Hole Center to Center 1 in, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV AC, Termination Style Crimp, Standards CSA Certified, UL 486A-486B, UL Listed
