  11. Uninsulated Compression Terminal, 2/0 AWG Max, 3/4 in Stud, Long Barrel, Copper, None

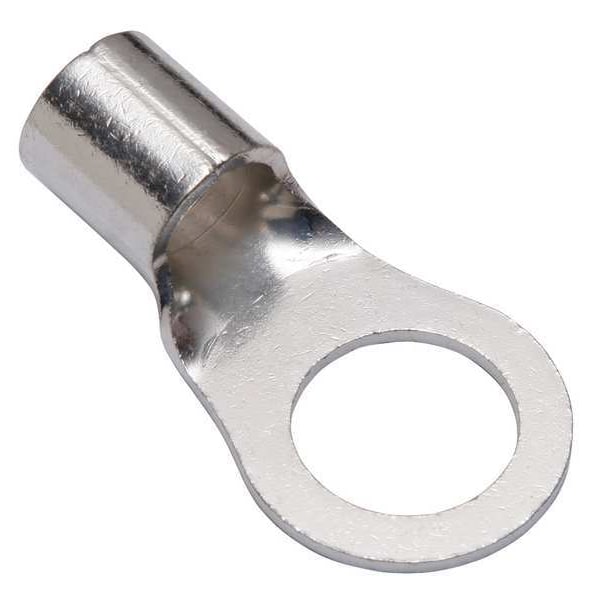

Burndy Uninsulated Compression Terminal, 2/0 AWG Max, 3/4 in Stud, Long Barrel, Copper, None YAD26M20E34 - main

Uninsulated Compression Terminal, 2/0 AWG Max, 3/4 in Stud, Long Barrel, Copper, None

  • Mfr # YAD26M20E34

  • Zoro # G6086272

product price: $12.35
/ea

Key Features

For Wire Size
2/0 AWG
For Conductor Material
Copper
For Stud Size
3/4 in
Material
Copper
Barrel Size
Long
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
YAD26M20E34
Zoro #
G6086272
UPC #
781810668238
Country of Origin
Taiwan, Province of China

Dimensions

For Wire Size
2/0 AWG
For Stud Size
3/4 in
Barrel Size
Long
Tongue Width
1.14 in
Tongue Width - Wire Connector
1.1 in
Width
1.1"
Barrel Length
0.71 in
Overall Length
2.28 in
Cable Size
2/0 AWG
Length
2.2"
Minimum Wire Size
2/0 AWG
Maximum Wire Size
2/0 AWG
Tongue Length
1.57 in
Barrel Outside Diameter
0.67 in
Tongue Thickness
0.08 in
Strip Length
7/8 in
Hole Diameter
0.8 in
Dimension - Length Overall inch
2.28 in
Dimension - Outside Diameter inch
0.67 in
Dimension - Pad Width inch
1.14 in
Dimension - Hole Size inch
0.80 in
Dimension - B Length inch
0.71 in
Conductor - Copper Str Size
2/0 AWG
Conductor Size
2/0 AWG
Dimension - Stud Size inch
44989
Dimension - Bolt Size fraction
2023-03-04
Dimension - Strip Length inch
13/16
Dimension - L Length Overall mm
56 mm

Details

Item
Uninsulated Compression Terminal
For Conductor Material
Copper
Material
Copper
Inspection Hole
No
Die Code
1022
Color Code
None
Standards
UL 467
Insulation Color
Bare
Plate Material
Tin
Seam
Brazed
Connector Type
YAD
Max. Temp.
302 Degrees F
Tongue Style
Ring
Wire Range
2/0 AWG
Peep Hole
No
Insulation Type
Non-Insulated
Connection Material
Tin Plater Copper
Max. Voltage
600 V
Hole Center to End
1.650"
Insulation Material
None
Terminal Shape
Ring Tongue
Maximum Operating Temperature
302 Degrees F
Compatible with Product Type
Code, Flex Cable
Termination Style
Crimp
Maximum Voltage
600 V
Compatible with Series
PAT4PC834, PAT750, PAT81KFT, Y35, Y39, Y4PC834, Y750, Y81KFT
Contact Material
Copper
Special Features
Durable Long Lasting Corrosion Resistance, Vibration Resistance and Tensile Strength, Provide Execellent High Conductivity Connections
Insulation Coverage
None
Minimum Operating Temperature
302 Degrees F
Barrel Style
Brazed
Hole Spacing
0.94 in
Contact Finish
Tin
Seam Style
Brazed
RoHS Compliant
Yes
Item Type
3B
Physical Attribute - Tongue Type
Ring
Feature - Barrel Type
Long
Application
The YAD uninsulated OEM lug terminal is constructed of electrolytic copper
Industry Standard(s)
UL467
Conductor Type
CU C Str-SizeCU C Flex-Size
Plated
Y
Type
Ring Tongue
Plating Type
Tin
Voltage - Maximum
600 V
Trade Name
HYLUGâ„¢

Description

Ring Terminal, Insulation Color Bare, Insulation Coverage None, Insulation Material None, Maximum Temperature 302 Degrees F, Maximum Voltage 600 V, Minimum Wire Size 2/0 AWG, Maximum Wire Size 2/0 AWG, Termination Style Crimp, Tongue Width 1.14 in, Contact Finish Tin, Contact Material Copper, Standards UL 467, Barrel Length 0.71 in, Barrel Outside Diameter 0.67 in, Barrel Size Long, Barrel Style Brazed, Compatible Grainger Part Number 22P219, 22P221, Compatible with Product Type Code, Flex Cable
