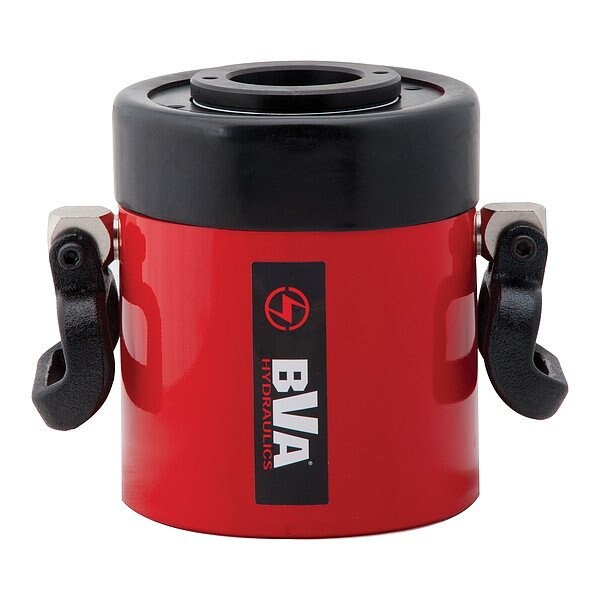

Hollow Hydraulic Rams, Steel, 100 ton Cap.

  • Mfr # HDC10003
  • Zoro # G015508871
product price:
$
5,902.99
/ea
Additional $215.00 delivery surcharge applies per item.
See details

Key Features

Stroke Length
3 in
Retracted Height
10 in
Nominal Capacity
100 ton
Base Bolt Circle Dia.
7.01 in
Outside Dia.
8.39 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HDC10003
Zoro #
G015508871
UPC #
047077813379
Country of Origin
Taiwan, Province of China

Dimensions

Stroke Length
3 in
Retracted Height
10 in
Base Bolt Circle Dia.
7.01 in
Outside Dia.
8.39 in
Center Hole Dia.
3.11 in
Plunger Dia.
4.92 in
Extended Height
13 in
Base Mounting Thread Size
5/8"-11
Collar Thread Size
8 3/8"-12
Nominal Stroke Length
3 in

Details

Nominal Capacity
100 ton
Item
Hollow Hydraulic Rams
Oil Capacity Push
66.47 cu in
Single Acting/Double Acting
Double Acting
Cylinder Type
Hollow Hole Cylinder
Body Material
Steel
Max. Pressure
10,000 psi
Includes
CH38F High Flow Coupler with Dust Cap

Description

Hollow Hydraulic Rams, Double Acting, Hollow Hole Cylinder, Steel, Nominal Capacity 100 ton, Stroke Length 3 in, Nominal Stroke Length 3 in, Max. Pressure 10,000 psi, Oil Capacity Push 66.47 cu in, Retracted Height 10 in, Extended Height 13 in, Outside Dia. 8.39 in, Plunger Dia. 4.92 in, Collar Thread Size 8 3/8 In.-12, Base Bolt Circle Dia. 7.01 in, Base Mounting Thread Size 5/8 In.-11, Center Hole Dia. 3.11 in, Includes CH38F High Flow Coupler with Dust Cap

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
