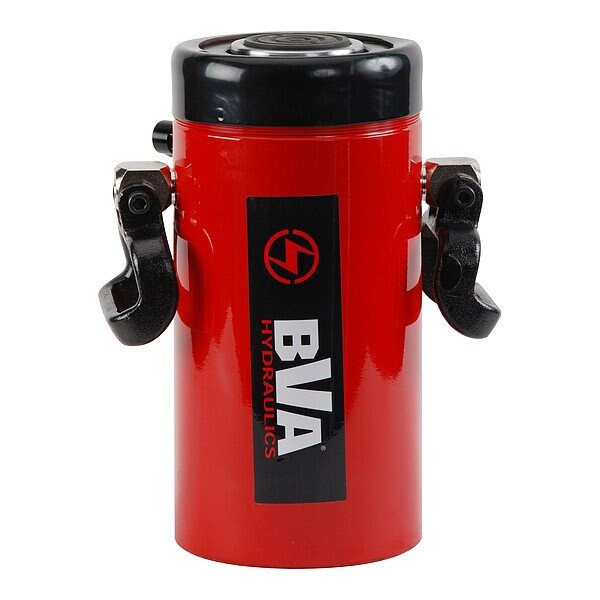

Hydraulic Ram, Steel, 75 ton Cap.

  • Mfr # HD7513
  • Zoro # G015439816
product price:
$
5,625.99
/ea
Additional $220.00 delivery surcharge applies per item.
See details

Key Features

Extended Height
33.82 in
Base Bolt Circle Dia.
4 in
Single Acting/Double Acting
Double Acting
Body Material
Steel
Stroke Length
13 1/8 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HD7513
Zoro #
G015439816
UPC #
047077795590
Country of Origin
Taiwan, Province of China

Dimensions

Extended Height
33.82 in
Base Bolt Circle Dia.
4 in
Stroke Length
13 1/8 in
Outside Dia.
5.75 in
Collar Thread Size
5 3/4''-12
Base Mounting Thread Size
3/4"-10
Retracted Height
20.71 in
Bore Dia.
4.53 in
Plunger Thread Size
1"-12
Nominal Stroke Length
13 in

Details

Single Acting/Double Acting
Double Acting
Body Material
Steel
Item
Hydraulic Ram
Weight
136.8 lb
Includes
CH38F High Flow Coupler with Dust Cap
Max. Pressure
10,000 psi
Oil Capacity Push
67.06 cu in
Effective Push Area
16.09 sq in
Cylinder Type
General Purpose
Nominal Capacity
75 ton

Description

Hydraulic Ram, Double Acting, General Purpose, Steel, Nominal Capacity 75 ton, Stroke Length 13 1/8 in, Nominal Stroke Length 13 in, Effective Push Area 16.09 sq in, Max. Pressure 10,000 psi, Oil Capacity Push 67.06 cu in, Retracted Height 20.71 in, Extended Height 33.82 in, Outside Dia. 5.75 in, Plunger Thread Size 1 In.-12, Collar Thread Size 5 3/4''-12, Base Bolt Circle Dia. 4 in, Base Mounting Thread Size 3/4 In.-10, Weight 136.8 lb, Includes CH38F High Flow Coupler with Dust Cap

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
