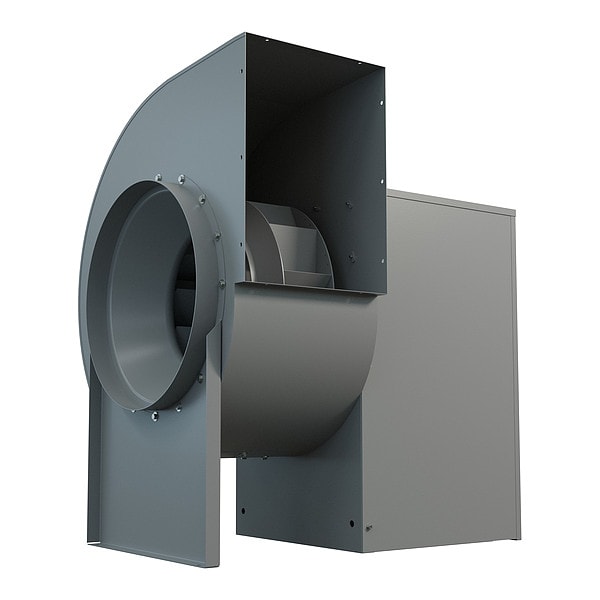

Blower, Belt Drive, Steel, 23 5/8" H

  • Mfr # BI1010200

  • Zoro # G613332700

product price:
$
2,175.99
/ea
Additional $145.00 delivery surcharge applies per item.
See details

Key Features

Inlet Diameter
11 in
Overall Height
23 5/8 in
Wheel Type
Backward-Inclined
Discharge Position
Top Horizontal
Minimum Airflow
1,300 cfm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
BI1010200
Zoro #
G613332700
UPC #
-
Country of Origin
Canada

Dimensions

Inlet Diameter
11 in
Overall Height
23 5/8 in
Housing Width
25 1/2 in
Overall Width
25 1/2 in
Outlet Width
8 1/4 in
Housing Depth
17 1/2 in
Overall Depth
17 1/2 in
Shaft Diameter
3/4 in
Outlet Height
11 5/16 in
Wheel Diameter
10 in
Manufacturer Warranty Length
1 yr
Housing Height
23 5/8 in
Wheel Width
10 1/2 in

Details

Item
Blower
Wheel Type
Backward-Inclined
Discharge Position
Top Horizontal
Minimum Airflow
1,300 cfm
Resistance Properties
Corrosion Resistant
Bearing Type
Pillow Block Ball
AMCA Fan Class
I
For Location
Outdoor
Spark Resistant Construction Type
Not Rated
Features
Motor Access from 3 Sides, Sloped Motor Base for Ease of Motor Installation
Application
Ventilation
Housing Material
Steel
Includes Drive Package
Yes
For Ventilation Type
Exhaust
Number of Inlets
1
Corrosion Resistant
Yes
Drive Type
Belt Drive
Maximum Airflow
3,000 cfm
Rotation
CCW
Mount Type
Roof
Outlet Shape
Rectangular
Maximum Motor Horsepower
2 hp
Maximum Motor Speed
3,441 RPM
Standards
AMCA Air Performance Certified, cETus
Number of Discharge Positions
8
Minimum Motor Horsepower
2 hp
Mounting Orientation
Horizontal
Housing Material Gauge
16 ga
Wheel Material
Aluminum
Hazardous Location Application
No
Chemical Resistant
No
Maximum Fan Speed
3,441 RPM
Maximum Static Pressure
1 1/2 in wc
For High-Static Pressure Applications
Yes
Flange Type
Non-Flanged
Sound Level
Not Rated
Speed Controllable
No
Assembly
Assembled
Maximum Inlet Air Temperature
250 Degrees F
Airflow @ 0.000 in SP
3,000 cfm
Motor Horsepower
2 hp
Number of Speeds
1
Motor Enclosure
Open Dripproof
OEM Replacement
No
Airflow @ 1.500 in SP
2,131 cfm
Airflow @ 0.250 in SP
2,375 cfm
Minimum Fan Speed
3,441 RPM
Airflow @ 0.750 in SP
2,282 cfm
Nameplate Voltage
115/230V AC
Product Type
Motor
Airflow @ 1.000 in SP
2,332 cfm
Airflow @ 0.375 in SP
2,353 cfm
Airflow @ 0.500 in SP
2,353 cfm
Phase
1
Airflow @ 1.250 in SP
2,182 cfm
Airflow @ 0.125 in SP
2,400 cfm

Description

Belt driven utility blower
