  9. Exhaust Fan, Assembled, 1,075 RPM

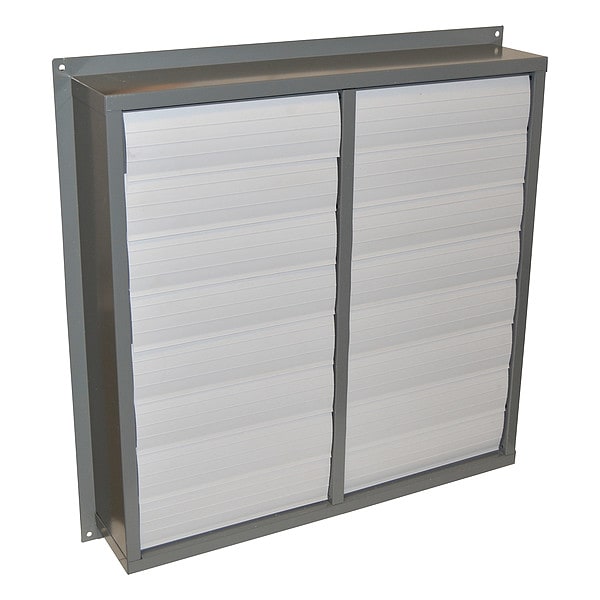

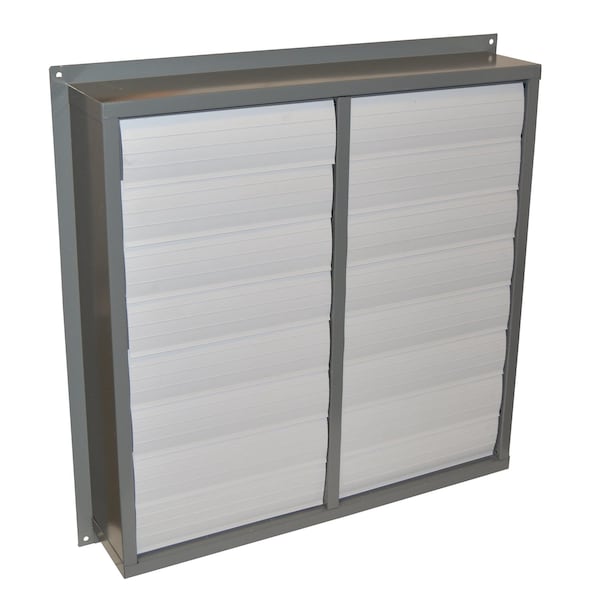

Canarm Exhaust Fan, Assembled, 1,075 RPM SD30-G1D - main

Exhaust Fan, Assembled, 1,075 RPM

  • Mfr # SD30-G1D

  • Zoro # G214739182

product price: $797.99
/ea
Item requires special delivery charges. A $110.00 per item surcharge will be applied.

Key Features

Motor Enclosure
Totally Enclosed Air Over
Noise Level @ 0.000 in SP @ 5 ft
42.3 sones
Number of Blades
3
For Minimum Wall Thickness
6 in
Phase
1
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SD30-G1D
Zoro #
G214739182
UPC #
-
Country of Origin
Canada

Dimensions

For Minimum Wall Thickness
6 in
Manufacturer Warranty Length
1 yr
Blade Diameter
30 in
Overall Width
35 1/4 in
Overall Diameter
30 in
Overall Depth
18 in
Overall Height
35 1/4 in
For Maximum Wall Thickness
6 in
For Cut-Out Width
33 in
For Cut-Out Height
33 in

Details

Item
Exhaust Fan
Motor Enclosure
Totally Enclosed Air Over
Noise Level @ 0.000 in SP @ 5 ft
42.3 sones
Number of Blades
3
Phase
1
Frame Finish
Powder Coated
Ring-Mount Style
Flange
Full Load Current
2.2 A, 4.4 A
Fan Style
Box
Maximum Airflow
8,000 cfm
Maximum Noise Level
82 dBA
Standards
cETLus
Guard Type
Intake
Motor Horsepower
1/3 hp
Guard Finish
Chrome Plated
Nameplate Voltage
115V AC
Motor Speed
1,075 RPM
Includes Motor
Yes
Number of Speeds
1
Includes Dehumidistat
No
Thermal Protection
Yes
Maximum Ambient Operating Temperature
104 Degrees F
Number of Fans
1
Control Type
Toggle Switch
Maximum Static Pressure
0.25 in wg
Guard Material
Steel
Frame Material
Steel
Exhaust Airflow @ 0.000 in SP
8,000 cfm
Supply Airflow @ 0.000 in SP
7,000 cfm
Housing Material
Steel
Ventilation Type
Exhaust
Blade Material
Galvanized Steel
Assembled
Assembled
Drive Type
Direct Drive
Housing Finish
Unfinished

Description

SINGLE SPEED STANDARD FAN
