  9. Exhaust Fan, Hazardous Location, 10 In

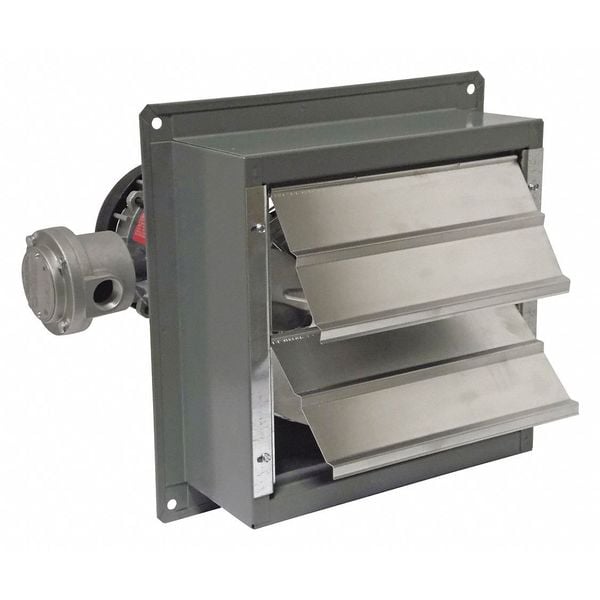

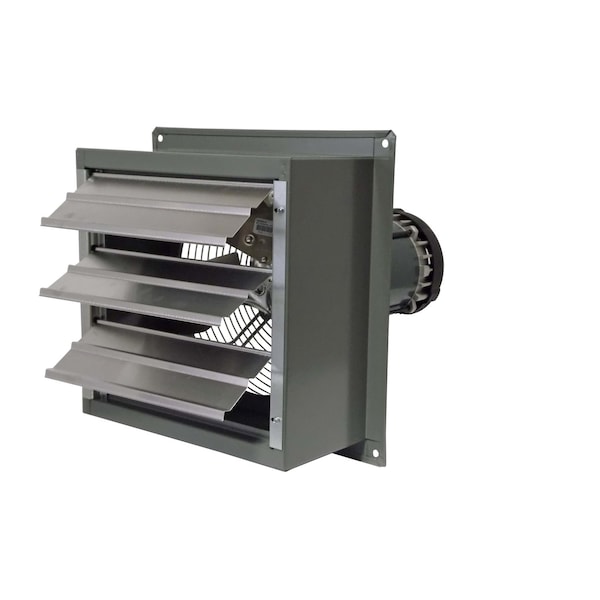

Canarm Exhaust Fan, Hazardous Location, 10 In SD10-XPF - main

Exhaust Fan, Hazardous Location, 10 In

  • Mfr # SD10-XPF

  • Zoro # G7585347

product price: $821.99
/ea
Free Shipping & Returns

Key Features

Propeller Material
Aluminum
Motor Type
Explosion Proof
Venturi Clearance Dia. (In.)
1/8 in
Flange Width (In.)
1 1/4 in
Motor Insulation
Class B
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SD10-XPF
Zoro #
G7585347
UPC #
062345350356
Country of Origin
Canada

Dimensions

Venturi Clearance Dia. (In.)
1/8 in
Flange Width (In.)
1 1/4 in
Max. Depth (In.)
17 1/2 in
Dimension D (In.)
14 in
Venturi Depth (In.)
5/8 in
Dimension A (In.)
15 1/4 in
Blade Dia.
10 in
Shaft Dia. (In.)
1/2 in
Dimension B (In.)
17 1/2 in
Flange Depth (In.)
1 1/4 in
Outside Dia. (In.)
7 1/8 in
Inside Dia. (In.)
8 1/5 in
Height (In.)
15 1/4 in
Dimension C (In.)
4 in
Width (In.)
15 1/4 in
Venturi Depth
5/8 in
Flange Width
1 1/4 in
For Minimum Wall Thickness
4 in
Flange Depth
1 1/4 in
Overall Width
15 1/4 in
For Maximum Wall Thickness
4 in
For Cut-Out Diameter
14 in
Shaft Diameter
1/2 in
Manufacturer Warranty Length
1 yr
Blade Diameter
10 in
Overall Diameter
15 1/4 in
For Cut-Out Width
14 in
For Cut-Out Height
13 in
Overall Height
15 1/4 in
Overall Depth
17 1/2 in
Venturi Diameter
1/8 in

Details

Item
Shutter Mounted Hazardous Location Exhaust Fan
Propeller Material
Aluminum
Motor Type
Explosion Proof
Motor Insulation
Class B
Mounting Holes O.C. (In.)
14 in
Fan Voltage
115/208-230V AC
Frame Material
Steel
Motor RPM
1,725 RPM
Hazardous Location Class
Class I, Group C and D; Class II, Group F and G
Mounting Position
Horizontal
Phase
1
Full Load Amps
6.6/3.3
Drive Package Included
No
Watts
250 W
Includes
EPFC Motor Enclosure, Explosion Proof Motor, Shutter, Wire Guard
Motor Enclosure
Totally Enclosed Fan Cooled
Frame Finish
Powder Coated
Exhaust/Supply Fan Item
Exhaust Fan
Agency Compliance
cETLus, OSHA Compliant Guards
Hz
60
Max. Ambient Temp. (F)
104 Degrees Degrees F
For Use With
General Ventilation Applications, Hazardous Locations, Explosion Proof, Shutter Mounted Exhaust Fan
Number of Blades
3
Type
Explosion Proof
CFM @ 0.000-In. SP
620 cfm
Drive Package With Motor Included
No
Exhaust/Supply Fan Motor HP
1/3 hp
Bearing Type
Ball
Standards
OSHA Compliant
Frequency
60 Hz
Ventilation Type
Exhaust
Nameplate Voltage
115/230V AC
Exhaust Airflow @ 0.000 in SP
620 cfm
Thermal Protection
Yes
Includes Dehumidistat
No
Vent Design
Ductless
Control Type
Toggle Switch
Full Load Current
6.6 A
Guard Finish
Chrome
Guard Type
Intake
Maximum Airflow
620 cfm
Noise Level @ 0.100 in SP @ 5 ft
6.5 sones
Housing Material
Steel
Number of Speeds
1
Speed Controllable
No
Exhaust Airflow @ 0.100 in SP
530 cfm
Method of Construction
Stamped
Fan Style
Shutter-Mounted
Maximum Ambient Operating Temperature
104 Degrees F
Maximum Noise Level
6.5 sones
Noise Level @ 0.000 in SP @ 5 ft
6.5 sones
Housing Finish
Powder-Coated
Assembled
Assembled
Guard Material
Steel
Supply Airflow @ 0.000 in SP
620 cfm
Motor Speed
1,625 RPM
Includes Grill
No
Includes Motor
No
Wattage
250 W
Blade Material
Aluminum
Mounting Orientation
Horizontal
Drive Type
Direct Drive
Electrical Connection
Hardwired
Number of Fans
1
Motor Horsepower
1/3 hp
Voltage
115/208-230

Description

Shutter Mounted Hazardous Location Exhaust Fan, Assembled Assembled, Blade Diameter 10 in, Blade Material Aluminum, Control Type Toggle Switch, Drive Type Direct Drive, Duct Diameter Not Applicable, Exhaust Airflow @ 0.000 in SP 620 cfm, For Cut-Out Height 13 in, For Cut-Out Width 14 in, For Maximum Wall Thickness 4 in, For Minimum Wall Thickness 4 in, Frame Finish Powder Coated, Frame Material Steel, Guard Finish Chrome, Guard Material Steel, Guard Type Intake
