Canarm

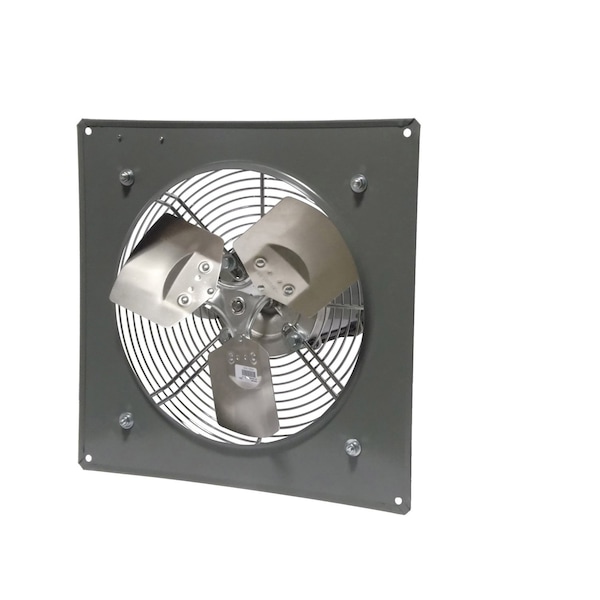

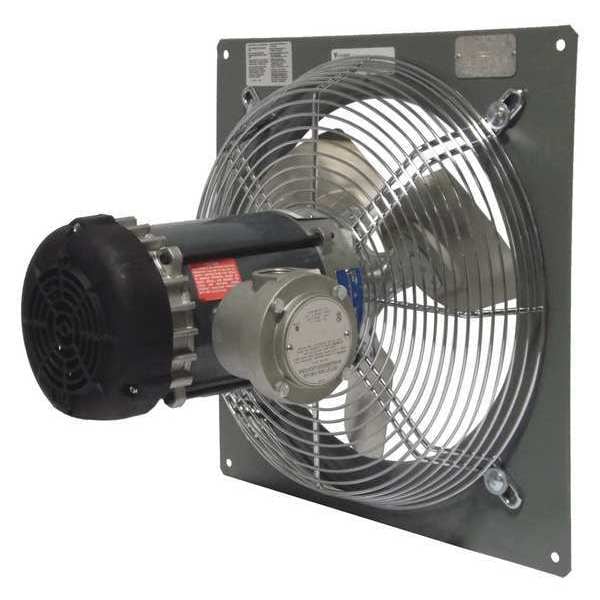

Exhaust Fan, Hazardous Location, 16 In

product price: $759.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Drive Package With Motor Included No
  • Venturi Depth (In.) 5/8 in
  • Phase 1
  • Frame Finish Powder Coated
  • Hz 60
See all product information

Product Information

Dimensions

Venturi Depth (In.) 5/8 in
Max. Depth (In.) 13 3/4 in
Dimension C (In.) 20 in
Blade Dia. 16 in
Height (In.) 21 1/4 in
Shaft Dia. (In.) 1/2 in
Venturi Clearance Dia. (In.) 1/8 in
Dimension A (In.) 21 1/4 in
Flange Width (In.) 1 1/2 in
Inside Dia. (In.) 20 in
Dimension B (In.) 13 3/4 in
Outside Dia. (In.) 21 1/4 in
Width (In.) 21 1/4 in
Dimension D (In.) 20 in
Flange Width 1 1/2 in
Venturi Depth 5/8 in
Overall Depth 13 3/4 in
Shaft Diameter 1/2 in
For Cut-Out Width 20 in
For Cut-Out Diameter 20 in
Overall Width 21 1/4 in
Overall Diameter 21 1/4 in
For Cut-Out Height 20 in
Blade Diameter 16 in
Venturi Diameter 1/8 in
Manufacturer Warranty Length 1 yr
Overall Height 21 1/4 in

Details

Item Panel Mounted Hazardous Location Exhaust Fan
Drive Package With Motor Included No
Phase 1
Frame Finish Powder Coated
Hz 60
CFM @ 0.250-In. SP 2,270 cfm
CFM @ 0.000-In. SP 2,580 cfm
Drive Package Included No
Number of Blades 3
Exhaust/Supply Fan Motor HP 1/3 hp
Full Load Amps 6.6/3.1-3.3
Motor Enclosure Totally Enclosed Air Over
Type Explosion Proof
Exhaust/Supply Fan Item Exhaust Fan
Watts 250 W
Frame Material Steel
Bearing Type Ball
Agency Compliance cETLus
Propeller Material Aluminum
Motor RPM 1,725 RPM
Includes EPFC Motor Enclosure, Explosion Proof Motor, Wire Guard
Fan Voltage 115/208-230V AC
Sones @ 0.000-In. SP @ 5 Ft. 16
Motor Type Explosion Proof
Max. Ambient Temp. (F) 104 Degrees F
Mounting Holes O.C. (In.) 20 in
Hazardous Location Class Class I, Div 1, Group C and D; Class II, Div 1, Group F and G
Mounting Position Horizontal
CFM @ 0.125-In. SP 2,430 cfm
For Use With General Ventilation Applications, Hazardous Locations, Explosion Proof, Panel Mounted Exhaust Fan
Motor Insulation Class B
Standards OSHA Compliant
Maximum Ambient Operating Temperature 104 Degrees F
Maximum Noise Level 17 sones
Full Load Current 0.5 A
Includes Grill No
Includes Motor No
Exhaust Airflow @ 0.000 in SP 2,580 cfm
Motor Speed 1,725 RPM
Blade Material Aluminum
Mounting Orientation Horizontal
Guard Finish Chrome
Vent Design Ductless
Control Type Toggle Switch
Housing Finish Powder-Coated
Assembled Assembled
Number of Speeds 1
Electrical Connection Hardwired
Housing Material Steel
Fan Style Panel
Nameplate Voltage 115/208-230V AC
Includes Dehumidistat No
Wattage 250 W
Ventilation Type Exhaust
Noise Level @ 0.100 in SP @ 5 ft 16 sones
Exhaust Airflow @ 0.250 in SP 2,270 cfm
Drive Type Direct Drive
Maximum Airflow 2,580 cfm
Speed Controllable No
Guard Material Steel
Discharge Direction Horizontal
Exhaust Airflow @ 0.100 in SP 2,480 cfm
Method of Construction Stamped
Exhaust Airflow @ 0.125 in SP 2,430 cfm
Supply Airflow @ 0.000 in SP 2,580 cfm
Number of Fans 1
Noise Level @ 0.000 in SP @ 5 ft 17 sones
Motor Horsepower 1/3 hp
Frequency 60 Hz
Guard Type Intake
Speed Control No
Voltage 115/208-230

Description

Panel Mounted Hazardous Location Exhaust Fan, Assembled Assembled, Blade Diameter 16 in, Blade Material Aluminum, Control Type Toggle Switch, Drive Type Direct Drive, Duct Diameter Not Applicable, Exhaust Airflow @ 0.000 in SP 2,580 cfm, For Cut-Out Height 20 in, For Cut-Out Width 20 in, Frame Finish Powder Coated, Frame Material Steel, Guard Finish Chrome, Guard Material Steel, Guard Type Intake, Hazardous Location Class Class I, Div 1, Group C and D; Class II, Div 1, Group F and G
