  9. Exhst Shttr Fan, 30In Bld Dia, Galval, 115V

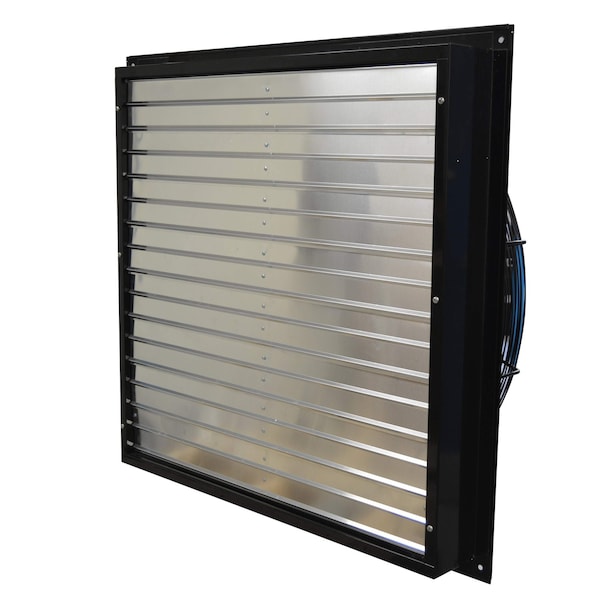

Canarm Exhst Shttr Fan, 30In Bld Dia, Galval, 115V XFS30 - main

Exhst Shttr Fan, 30In Bld Dia, Galval, 115V

  • Mfr # XFS30

  • Zoro # G203541178

product price: $810.99
/ea
Item requires special delivery charges. A $45.00 per item surcharge will be applied.

Key Features

Exhaust/Supply Fan Item
Exhaust Fan
Blade Dia.
30 in
Number of Speeds
2
Fan Voltage
115V AC
Exhaust/Supply Fan Motor HP
1/2 hp
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XFS30
Zoro #
G203541178
UPC #
062345354910
Country of Origin
China

Dimensions

Blade Dia.
30 in
Width
34 7/8 in
Height
34 7/8 in
Max. Depth
12 1/2 in
Overall Width
34 7/8 in
Blade Diameter
30 in
Overall Depth
12 1/2 in
Overall Height
34 7/8 in

Details

Exhaust/Supply Fan Item
Exhaust Fan
Number of Speeds
2
Fan Voltage
115V AC
Exhaust/Supply Fan Motor HP
1/2 hp
Square Opening Required
34 in
Item
Exhaust Shutter Fan
Number of Blades
5
Phase
1
Motor RPM
1080/980 RPM
Blade Material
Steel
Bearing Type
Sealed Ball
CFM @ 0.125-In. SP
6400/5000
Motor Type
Outside Rotor Motor
Motor Enclosure
Totally Enclosed Air Over
Motor Insulation
Class B
Includes
b
Sones @ 0.000-In. SP @ 5 Ft.
19/16 sones
Max. Ambient Temp.
70 Degrees C
Full Load Amps
4.9/4.3 A
Frame Finish
Powder Coated
Guard Material
powder coat
Thermal Protection
Yes
Standards
ETL Certified, OSHA
Wire Guard Finish
Powder Coated
Frame Material
Steel
CFM @ 0.250-In. SP
6400/5000 cfm
Ventilation Type
Exhaust
Nameplate Voltage
115V AC
Exhaust Airflow @ 0.000 in SP
4,100 cfm, 5,200 cfm
Maximum Ambient Operating Temperature
70 Degrees C
Motor Speed
1,080 RPM
Motor Horsepower
1/2 hp

Description

Exhaust Shutter Fan, Blade Diameter 30 in, Blade Material Steel, Exhaust Airflow @ 0.000 in SP 4,100 cfm, 5,200 cfm, Frame Finish Powder Coated, Frame Material Steel
