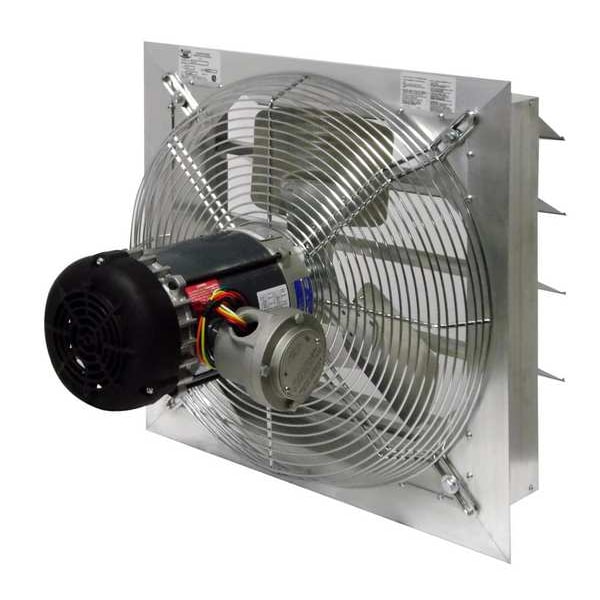

ExtFn, 18In Bld Dia, Galvalume, 230/460V

  • Mfr # AX18-4M

  • Zoro # G003538903

product price:
$
1,062.99
/ea
Free Shipping & Returns

Key Features

Exhaust/Supply Fan Item
Exhaust Fan
Blade Dia.
18 in
Number of Speeds
1
Fan Voltage
230/460V AC
CFM @ 0.000-In. SP
3200 cfm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
AX18-4M
Zoro #
G003538903
UPC #
062345206042
Country of Origin
Canada
Exhaust/Supply Fan Item
Exhaust Fan
Number of Speeds
1
Fan Voltage
230/460V AC
CFM @ 0.000-In. SP
3200 cfm
Exhaust/Supply Fan Motor HP
1/3 hp
Square Opening Required
19 3/4 in
Item
Exhaust Fan
Guard Material
Chrome Plated Wire
CFM @ 0.125-In. SP
2950 cfm
Wire Guard Finish
Chrome
Phase
3
Motor Enclosure
Totally Enclosed Air Over
Hz
50 Hz
Motor Insulation
Class 1; Class 2
Blade Material
Steel
Motor Type
Explosion Proof Motor
Motor RPM
1725 RPM
CFM @ 0.250-In. SP
2625 cfm
Frame Finish
Aluminum
Number of Blades
3
Standards
OSHA
Full Load Amps
6.6/3.1-3.3 A
Max. Ambient Temp.
40 Degrees C
Bearing Type
Ball
Thermal Protection
No
Frame Material
Aluminum
Includes
Intake Guard, Shutter
Sones @ 0.000-In. SP @ 5 Ft.
22.0 sones
Exhaust Airflow @ 0.250 in SP
2,625 cfm
Ventilation Type
Exhaust
Exhaust Airflow @ 0.125 in SP
2,950 cfm
Motor Speed
1,725 RPM
Maximum Noise Level
22 sones
Frequency
50 Hz
Noise Level @ 0.000 in SP @ 5 ft
22 sones
Assembled
Assembled
Hazardous Location Class
Class I, Div 1, Group C and D; Class II, Div 1, Group F and G
Full Load Current
6.6 A
Maximum Ambient Operating Temperature
104 Degrees F
Exhaust Airflow @ 0.000 in SP
3,200 cfm
Nameplate Voltage
230/460V AC
Motor Horsepower
1/3 hp

Description

Exhaust Fan, Assembled Assembled, Blade Diameter 18 in, Blade Material Steel, Exhaust Airflow @ 0.000 in SP 3,200 cfm, Frame Finish Aluminum, Frame Material Aluminum, Guard Material Chrome Plated Wire, Hazardous Location Class Class I, Div 1, Group C and D; Class II, Div 1, Group F and G, Includes Intake Guard, Shutter, Maximum Noise Level 22 sones
