  9. ExtFn, 20In Bld, Galvalume, 115V

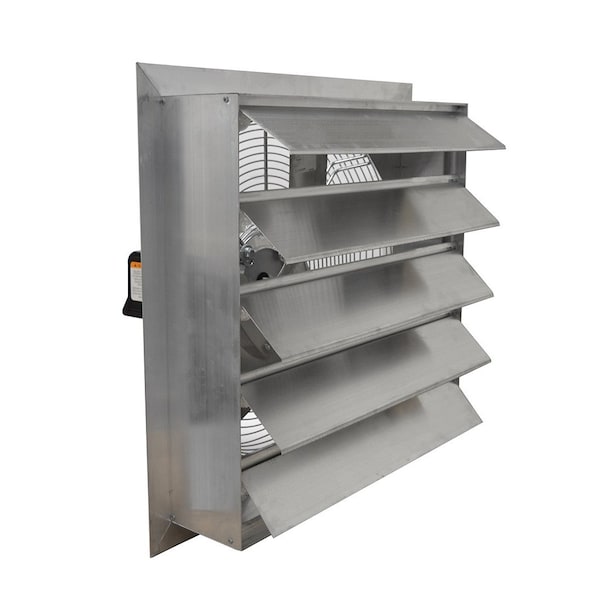

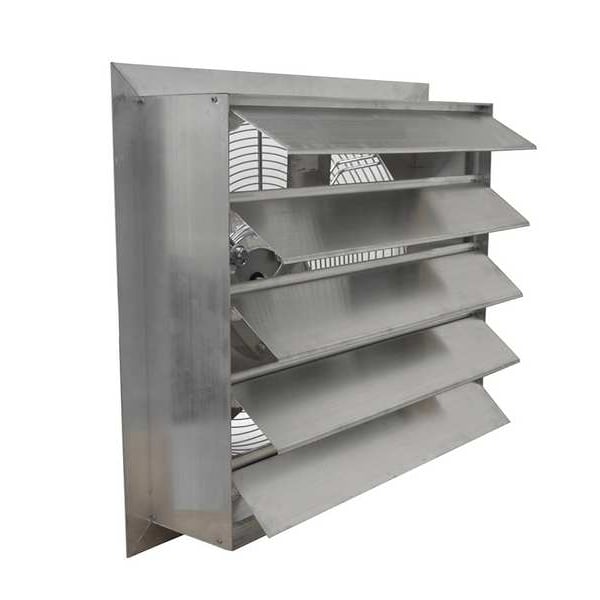

Canarm ExtFn, 20In Bld, Galvalume, 115V AX20-3 - main

ExtFn, 20In Bld, Galvalume, 115V

  • Mfr # AX20-3

  • Zoro # G403541176

product price: $661.99
/ea
Free Shipping & Returns

Key Features

Exhaust/Supply Fan Item
Exhaust Fan
Blade Dia.
20 in
Number of Speeds
2
Fan Voltage
115V AC
CFM @ 0.000-In. SP
3200/2310 cfm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
AX20-3
Zoro #
G403541176
UPC #
062345206127
Country of Origin
Canada

Dimensions

Blade Dia.
20 in
Width
24 3/4 in
Height
24 3/4 in
Max. Depth
17 in
Overall Depth
17 in
Blade Diameter
20 in
Overall Height
24 3/4 in
Overall Width
24 3/4 in

Details

Exhaust/Supply Fan Item
Exhaust Fan
Number of Speeds
2
Fan Voltage
115V AC
CFM @ 0.000-In. SP
3200/2310 cfm
Exhaust/Supply Fan Motor HP
1/3 hp
Square Opening Required
21 3/4 in
Item
Exhaust Fan
Standards
OSHA
CFM @ 0.250-In. SP
2625/1750 cfm
Hz
50 Hz
Frame Material
Aluminum
Motor Type
PSC
Full Load Amps
5.5/2.9 A
Bearing Type
Ball
Motor Enclosure
Totally Enclosed Air Over
Frame Finish
Aluminum
Guard Material
Chrome Plated Wire
Wire Guard Finish
Chrome
Blade Material
Steel
Number of Blades
3
Sones @ 0.000-In. SP @ 5 Ft.
29.0 sones
Max. Ambient Temp.
40 Degrees C
CFM @ 0.125-In. SP
2950/1960 cfm
Phase
1
Motor Insulation
Class B
Motor RPM
1725/1140 RPM
Thermal Protection
Yes
Includes
Intake Guard, Shutter
Frequency
50 Hz
Exhaust Airflow @ 0.250 in SP
2,625 cfm
Ventilation Type
Exhaust
Assembled
Assembled
Motor Horsepower
1/3 hp
Exhaust Airflow @ 0.000 in SP
3,200 cfm
Nameplate Voltage
115V AC
Full Load Current
5.5 A
Noise Level @ 0.000 in SP @ 5 ft
29 sones
Maximum Ambient Operating Temperature
104 Degrees F
Exhaust Airflow @ 0.125 in SP
2,950 cfm
Maximum Noise Level
29 sones
Motor Speed
1,725 RPM

Description

Exhaust Fan, Assembled Assembled, Blade Diameter 20 in, Blade Material Steel, Exhaust Airflow @ 0.000 in SP 3,200 cfm, Frame Finish Aluminum, Frame Material Aluminum, Guard Material Chrome Plated Wire, Includes Intake Guard, Shutter, Maximum Noise Level 29 sones
