  9. ExtFn, 24In Bld Dia, Galvalume, 230/460V

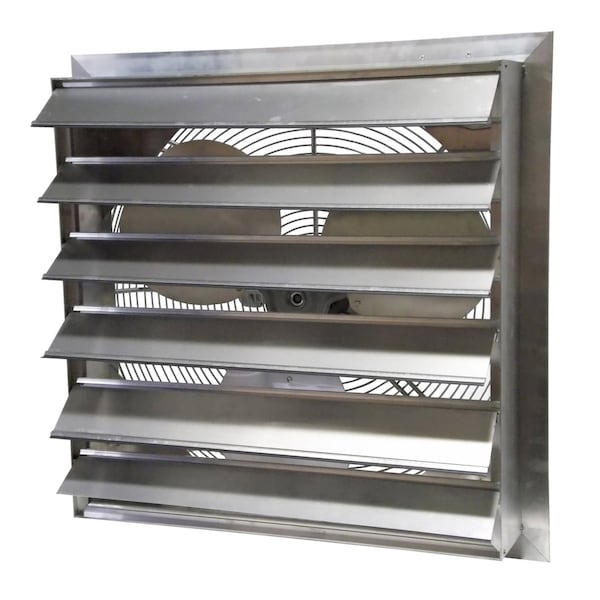

Canarm ExtFn, 24In Bld Dia, Galvalume, 230/460V AX24-4M - main

ExtFn, 24In Bld Dia, Galvalume, 230/460V

  • Mfr # AX24-4M

  • Zoro # G403538909

product price: $1,255.99
/ea
Additional $125.00 delivery surcharge applies per item.
See details

Key Features

Exhaust/Supply Fan Item
Exhaust Fan
Blade Dia.
24 in
Number of Speeds
1
Fan Voltage
230/460V AC
CFM @ 0.000-In. SP
5520 cfm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
AX24-4M
Zoro #
G403538909
UPC #
062345206301
Country of Origin
Canada

Dimensions

Blade Dia.
24 in
Width
28 3/4 in
Height
28 3/4 in
Max. Depth
18 3/4 in
Blade Diameter
24 in
Overall Height
28 3/4 in
Overall Width
28 3/4 in
Overall Depth
18 3/4 in

Details

Exhaust/Supply Fan Item
Exhaust Fan
Number of Speeds
1
Fan Voltage
230/460V AC
CFM @ 0.000-In. SP
5520 cfm
Exhaust/Supply Fan Motor HP
1/3 hp
Square Opening Required
25 3/4 in
Item
Exhaust Fan
Motor Type
Explosion Proof Motor
Wire Guard Finish
Chrome
Frame Material
Aluminum
Motor Insulation
Class 1; Class 2
Max. Ambient Temp.
40 Degrees C
Phase
3
CFM @ 0.250-In. SP
5130 cfm
Guard Material
Chrome Plated Wire
Sones @ 0.000-In. SP @ 5 Ft.
29.0 sones
CFM @ 0.125-In. SP
5330 cfm
Standards
OSHA
Hz
50 Hz
Motor Enclosure
Totally Enclosed Air Over
Blade Material
Steel
Motor RPM
1725 RPM
Includes
Intake Guard, Shutter
Thermal Protection
No
Full Load Amps
6.6/3.1-3.3
Number of Blades
3
Frame Finish
Aluminum
Bearing Type
Ball
Exhaust Airflow @ 0.125 in SP
5,330 cfm
Assembled
Assembled
Motor Horsepower
1/3 hp
Maximum Noise Level
29 sones
Ventilation Type
Exhaust
Exhaust Airflow @ 0.000 in SP
5,520 cfm
Noise Level @ 0.000 in SP @ 5 ft
29 sones
Motor Speed
1,725 RPM
Maximum Ambient Operating Temperature
104 Degrees F
Frequency
50 Hz
Exhaust Airflow @ 0.250 in SP
5,130 cfm
Nameplate Voltage
230/460V AC
Hazardous Location Class
Class I, Div 1, Group C and D; Class II, Div 1, Group F and G
Full Load Current
6.6 A

Description

Exhaust Fan, Assembled Assembled, Blade Diameter 24 in, Blade Material Steel, Exhaust Airflow @ 0.000 in SP 5,520 cfm, Frame Finish Aluminum, Frame Material Aluminum, Guard Material Chrome Plated Wire, Hazardous Location Class Class I, Div 1, Group C and D; Class II, Div 1, Group F and G, Includes Intake Guard, Shutter, Maximum Noise Level 29 sones
