  9. Panel Fan, 16In Bld Dia, Steel, 230/460 V

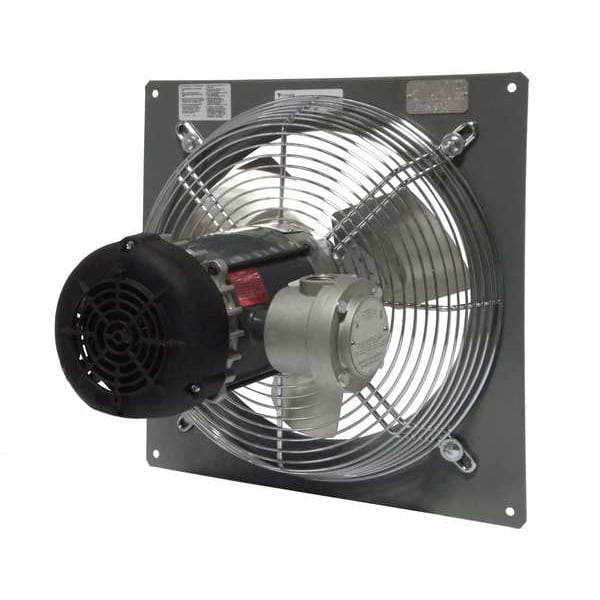

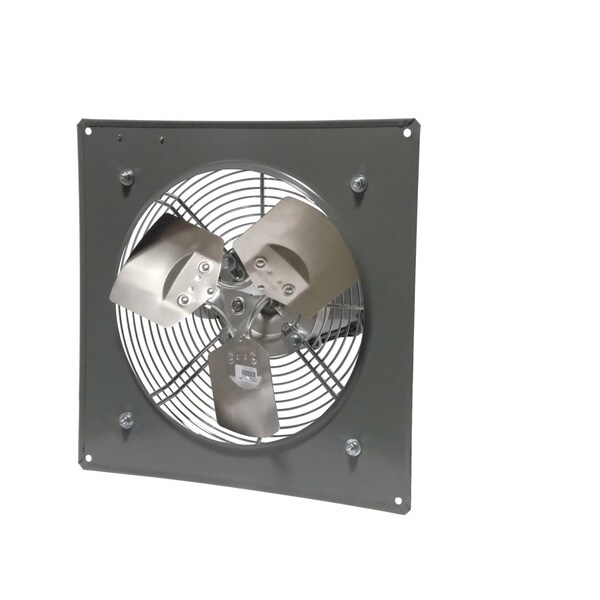

Canarm Panel Fan, 16In Bld Dia, Steel, 230/460 V P16-4M - main

Panel Fan, 16In Bld Dia, Steel, 230/460 V

  • Mfr # P16-4M

  • Zoro # G803541158

product price: $976.99
/ea
Free Shipping & Returns

Key Features

Phase
3
Motor Enclosure
Totally Enclosed Air Over
Blade Material
Steel
Number of Speeds
Variable
Number of Blades
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P16-4M
Zoro #
G803541158
UPC #
062345367569
Country of Origin
Canada

Dimensions

Overall Height
21 1/4 in
Blade Diameter
16 in
Overall Depth
13 3/4 in
Overall Width
21 1/4 in

Details

Phase
3
Motor Enclosure
Totally Enclosed Air Over
Blade Material
Steel
Number of Speeds
Variable
Number of Blades
3
Item
Panel Fan
Bearing Type
Ball
Guard Material
Steel
Standards
OSHA
Motor Insulation
Class 1
Frame Material
Steel
Frame Finish
Powder Coated
Motor Type
DC
Vent Design
Ductless
Speed Controllable
No
Frequency
50 Hz
Includes Motor
Yes
Motor Speed
1,725 RPM
Hazardous Location Class
Class I, Div 1, Group C and D; Class II, Div 1, Group F and G
Guard Type
Intake
Motor Horsepower
1/3 hp
Noise Level @ 0.000 in SP @ 5 ft
17 sones
Drive Type
Direct Drive
Guard Finish
Chrome
Mounting Orientation
Horizontal
Assembled
Assembled
Exhaust Airflow @ 0.125 in SP
2,430 cfm
Maximum Ambient Operating Temperature
104 Degrees F
Full Load Current
6.6 A
Includes Grill
No
Exhaust Airflow @ 0.250 in SP
2,270 cfm
Maximum Noise Level
17 sones
Exhaust Airflow @ 0.000 in SP
2,580 cfm
Nameplate Voltage
230/460V AC
Ventilation Type
Exhaust
Maximum Airflow
2,580 cfm

Description

Panel Fan, Assembled Assembled, Blade Diameter 16 in, Blade Material Steel, Drive Type Direct Drive, Duct Diameter Not Applicable, Exhaust Airflow @ 0.000 in SP 2,580 cfm, Frame Finish Powder Coated, Frame Material Steel, Guard Finish Chrome, Guard Material Steel, Guard Type Intake, Hazardous Location Class Class I, Div 1, Group C and D; Class II, Div 1, Group F and G, Maximum Airflow 2,580 cfm, Maximum Noise Level 17 sones

Documents & Resources

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
