Shop CANARM

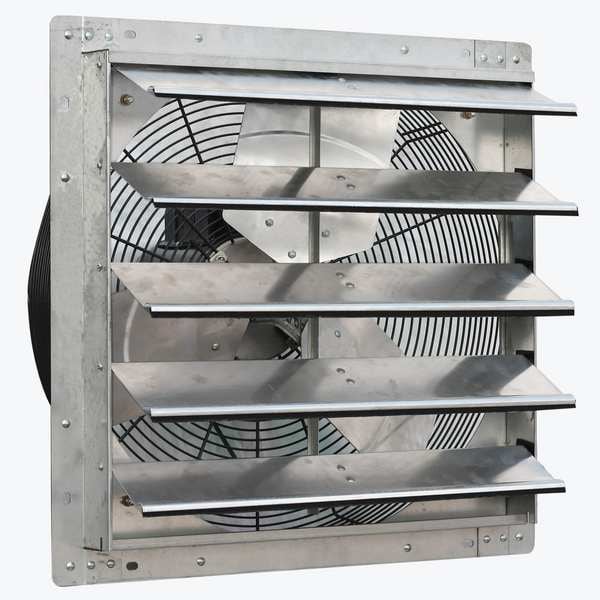

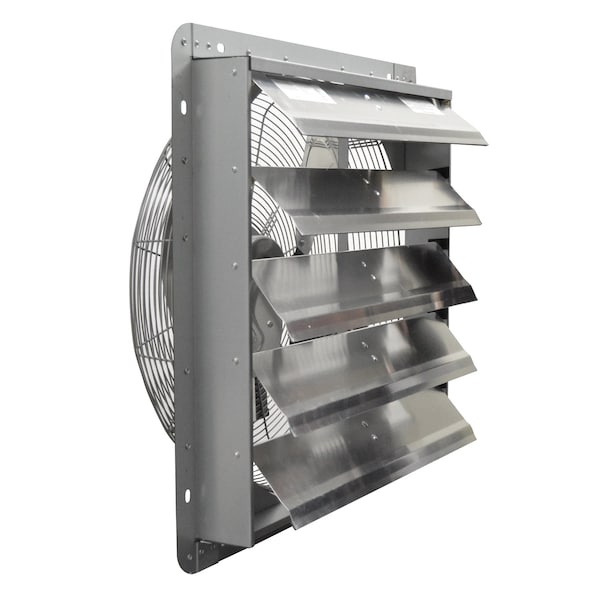

Shutter Fan, 20In Bld Dia, 120V

  • Mfr # GSF3-20A

  • Zoro # G403541152

product price:
$
381.99
/ea
Free Shipping & Returns

Key Features

Exhaust/Supply Fan Item
Exhaust Fan
Blade Dia.
20 in
Fan Voltage
120
Number of Blades
3
Frame Material
Aluminum
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
GSF3-20A
Zoro #
G403541152
UPC #
062345484020
Country of Origin
China

Dimensions

Blade Dia.
20 in
Overall Width
23 in
Height
23 in
Overall Depth
16 3/4 in
Blade Diameter
20 in
Width
23 in
Overall Height
23 in
Max. Depth
16 3/4 in

Details

Exhaust/Supply Fan Item
Exhaust Fan
Fan Voltage
120
Number of Blades
3
Frame Material
Aluminum
Exhaust/Supply Fan Motor HP
1/4 hp
CFM @ 0.000-In. SP
3368
Motor RPM
1075
Thermal Protection
Yes
Motor Insulation
Class B
Item
Galvanized Shutter Fan
Wire Guard Finish
Powder coat
Full Load Amps
2.59 A
Phase
1
Motor Enclosure
Totally Enclosed Air Over
Guard Material
Chrome Plated Wire
Motor Type
PSC
Bearing Type
Ball
Motor Speed
1,075 RPM
Maximum Ambient Operating Temperature
104 Degrees F
Max. Ambient Temp.
40 Degrees C
Nameplate Voltage
120V AC
Number of Speeds
3
Motor Horsepower
1/4 hp
Full Load Current
2.59 A
Square Opening Required
21 in
Exhaust Airflow @ 0.000 in SP
3,368 cfm
Includes
Adjustable Thermostat and Bypass, Blade, Motor, Shutter, Temperature
Frame Finish
Galvalume
Blade Material
Steel
Ventilation Type
Exhaust

Description

Galvanized Shutter Fan, Blade Diameter 20 in, Blade Material Steel, Exhaust Airflow @ 0.000 in SP 3,368 cfm, Frame Finish Galvalume, Frame Material Aluminum, Guard Material Chrome Plated Wire, Includes Adjustable Thermostat and Bypass, Blade, Motor, Shutter, Temperature, Maximum Noise Level Not Applicable
