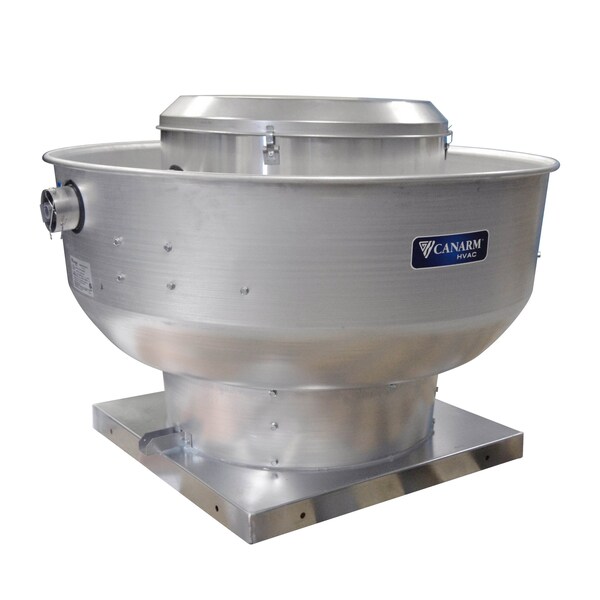

Upblast Exhauster, 1 Phase, 1 hp

  • Mfr # ALX165-UD100EC
  • Zoro # G607963989
product price:
$
1,299.99
/ea
Additional $175.00 delivery surcharge applies per item.
See details

Key Features

Number of Speeds
Variable
Wheel Material
Aluminum
Overall Height
27 1/8 in
Standards
UL 705
Drive Type
Direct Drive
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
ALX165-UD100EC
Zoro #
G607963989
UPC #
062345375618
Country of Origin
Canada

Dimensions

Overall Height
27 1/8 in
Base Width
24 3/4 in
Base Height
2 in
Base Length
24 3/4 in
Cutout Length
20.8 in
Wheel Diameter
16 1/2 in
Overall Width
37 1/2 in
Overall Depth
24 3/4 in
Fits Chest Size
On-Board Speed Adjustment Allows Simple Setup and Balancing with LED Display, Quick Release Latches for Easy Motor Access

Details

Number of Speeds
Variable
Wheel Material
Aluminum
Standards
UL 705
Drive Type
Direct Drive
Speed Controllable
Yes
Motor Type
Electronically Commutated
Wheel Type
Backward Inclined
Phase
1
Housing Material
Aluminum
Item
Upblast Exhauster
Exhaust Airflow @ 0.000 in SP
3,179 cfm
Airflow @ 0.000 in SP
3,179 cfm
Features
On-Board Speed Adjustment Allows Simple Setup and Balancing with LED Display, Quick Release Latches for Easy Motor Access
Exhaust Airflow @ 0.500 in SP
2,816 cfm
Power Source
Electric Corded
Motor Horsepower
1 hp
Weight
100 lb
Includes Drive Package
Yes
Electrical Connection
Wire Leads
Motor Speed
1,500 RPM
High-Efficiency Motor
Yes
For Air Type
Kitchen Air
For High-Static Pressure Applications
Yes
Maximum Static Pressure
2 in wc
Application
Commercial Buildings, Offices, Restaurants, Warehouses
Series
ALX-UD-EC
Frequency
50/60 Hz
Housing Material Fabrication
Spun
Mount Type
Roof Curb
Includes Motor
Yes
Exhaust Airflow @ 0.250 in SP
3,004 cfm
Nameplate Voltage
115/208-230V AC
Motor Enclosure
Open Dripproof
Assembly
Assembled
Base Shape
Square
Maximum Inlet Air Temperature
300 Degrees F
Power Source - TS Only
Electric Corded
Power Source - old
Electric Corded

Description

Upblast Exhauster, Application Commercial Buildings, Offices, Restaurants, Warehouses, Drive Type Direct Drive, For Air Type Kitchen Air, Base Diameter Not Applicable, Base Width 24 3/4 in, Base Length 24 3/4 in, Base Shape Square, Maximum Static Pressure 2 in wc, Exhaust Airflow @ 0.000 in SP 3,179 cfm, Nameplate Voltage 115/208-230V AC, Phase 1, Motor Horsepower 1 hp, Assembly Assembled, Number of Speeds Variable, Housing Material Aluminum, Wheel Material Aluminum, High-Efficiency Motor Yes
