  9. Upblast Exhauster, 1 Phase, 1/2 hp
Shop All Belt Drive Centrifugal Exhaust Vents
No Product Image Available
Canarm

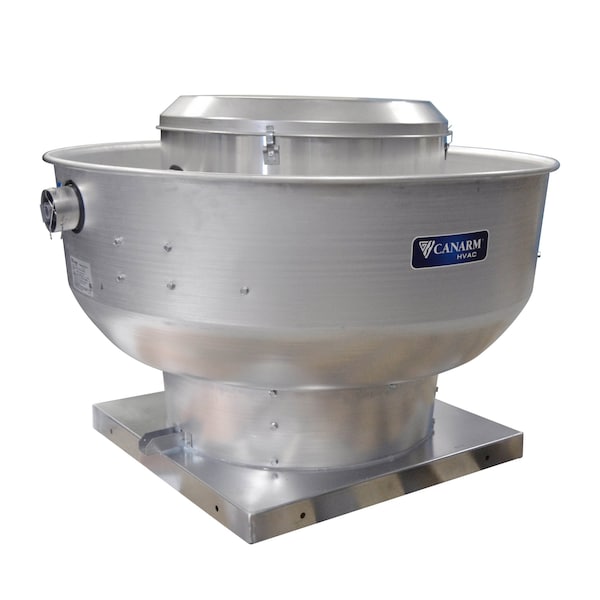

Upblast Exhauster, 1 Phase, 1/2 hp

product price: $969.99
/ea
Item requires special delivery charges. A $210.00 per item surcharge will be applied.
Free 30-Day Returns

Key Features

  • Number of Speeds Variable
  • Motor Type Electronically Commutated
  • Speed Controllable Yes
  • Base Height 2 in
  • Wheel Material Aluminum
See all product information

Product Information

Dimensions

Base Height 2 in
Overall Height 27 1/8 in
Base Length 24 3/4 in
Base Width 24 3/4 in
Overall Width 37 1/2 in
Cutout Length 20.8 in
Wheel Diameter 16 1/2 in
Overall Depth 24 3/4 in

Details

Number of Speeds Variable
Motor Type Electronically Commutated
Speed Controllable Yes
Wheel Material Aluminum
Phase 1
Housing Material Aluminum
Item Upblast Exhauster
Wheel Type Backward Inclined
Drive Type Direct Drive
Standards UL 705
For High-Static Pressure Applications Yes
Exhaust Airflow @ 0.000 in SP 2,595 cfm
Features On-Board Speed Adjustment Allows Simple Setup and Balancing with LED Display, Quick Release Latches for Easy Motor Access
High-Efficiency Motor Yes
Exhaust Airflow @ 0.500 in SP 2,155 cfm
Housing Material Fabrication Spun
Includes Drive Package Yes
Mount Type Roof Curb
Includes Motor Yes
Exhaust Airflow @ 0.250 in SP 2,372 cfm
Motor Horsepower 1/2 hp
Maximum Static Pressure 1 in wc
Series ALX-UD-EC
Frequency 50/60 Hz
Power Source Electric Corded
Airflow @ 0.000 in SP 2,595 cfm
Motor Speed 1,200 RPM
For Air Type Clean Air
Weight 100 lb
Application Commercial Buildings, Offices, Restaurants, Warehouses
Electrical Connection Wire Leads
Assembly Assembled
Motor Enclosure Open Dripproof
Nameplate Voltage 115/208-230V AC
Maximum Inlet Air Temperature 300 Degrees F
Base Shape Square

Description

Upblast Exhauster, Application Commercial Buildings, Offices, Restaurants, Warehouses, Drive Type Direct Drive, For Air Type Clean Air, Base Diameter Not Applicable, Base Width 24 3/4 in, Base Length 24 3/4 in, Base Shape Square, Maximum Static Pressure 1 in wc, Exhaust Airflow @ 0.000 in SP 2,595 cfm, Nameplate Voltage 115/208-230V AC, Phase 1, Motor Horsepower 1/2 hp, Assembly Assembled, Number of Speeds Variable, Housing Material Aluminum, Wheel Material Aluminum, High-Efficiency Motor Yes
