  6. Ashing Furnace, 1100C, 18L, 208/240V

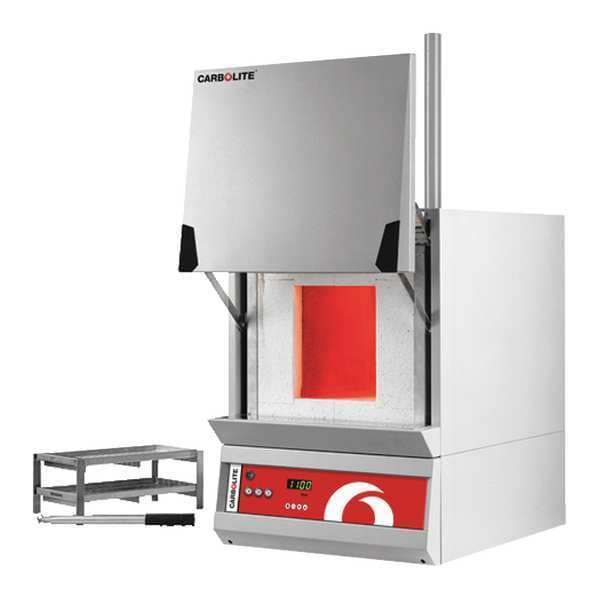

Carbolite Ashing Furnace, 1100C, 18L, 208/240V AAF1118-230SN - main

Ashing Furnace, 1100C, 18L, 208/240V

  • Mfr # AAF1118-230SN

  • Zoro # G2192261

product price:  $9,869.99
/ea
Additional $135.00 delivery surcharge applies per item.
See details

Key Features

Overall Depth
26 1/2 in
Overall Height
27 3/4 in
Overall Width
19 7/8 in
Convection Type
Gravity
Capacity
0.64 cu ft
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
AAF1118-230SN
Zoro #
G2192261
UPC #
-
Country of Origin
United Kingdom

Dimensions

Overall Depth
26 1/2 in
Overall Height
27 3/4 in
Overall Width
19 7/8 in
Overall Dimensions
27.75"H x 20"W x 26.5"D
Chamber Depth
15.74 in
Chamber Height
9.25 in
Inside Usable Dimensions
9.25"H x 7.75"W x 15.75"D
Chamber Width
7.71 in
Manufacturers Warranty Length
2 yr
Interior Width
7 3/4 in
Interior Depth
15 3/4 in
Interior Height
9 1/4 in

Details

Item
Ashing Furnace
Convection Type
Gravity
Capacity
0.64 cu ft
Volume
0.64 cu ft
Wattage
7,080 W
Voltage
240V AC
Features
Protection of the Elements from Carbon Build-Up or Corrosive Atmosphere Using Silicon Carbide Tiles
Standards
CE
Programmable
No
Temp. Range (F)
2012 Degrees
Capacity (Cu.-Ft.)
0.636
Preheat Time
70 min
Power Consumption
7000 Watts
Number of Shelves
2
Temp. Uniformity
+/-5 Degrees C
Power Requirement
208/240V, 50/60 Hz, 1-Phase
Includes
Single Ramp
Material
Resistive, Wire-Wound Heating Elements, Low Mass Ceramic Insulation
Thermostat
Digital, Single Set-Point Controller, Type K Thermocouple
Door Material
Ceramic
Temp. Range (C)
1100 Degrees
Housing Material
Steel
Temp. Range
Up to 1100 Degrees C
Number of Doors
1
Capacity (ML)
18,000
Special Features
70 Minute Heat-Up Time, Protective Silicon Carbide Tiles, Vertical Lift Door
Hz
60
Watts
1,600 W
Chamber Material
Refratory Ceramic
Interior Material
Ceramic
Temperature Setting - Maximum
1,100 Degrees C
Frequency
60 Hz
Product Type
Ashing Furnace
Timer Duration - Maximum
70 min
Housing Finish
Zinc Plated
Temperature Uniformity
+/-5 Degrees C
Number of Shelves Included
2
Display Type
Digital

Description

Ashing Furnace, Convection Type Gravity, Temp. Range (C) 1100 Degrees , Temp. Range (F) 2012 Degrees , Overall Height 27 3/4 in, Overall Width 19 7/8 in, Overall Depth 26 1/2 in, Chamber Height 9.25 in, Chamber Width 7.71 in, Chamber Depth 15.74 in, Hz 60, Voltage 240V AC, Watts 1,600 W, Capacity (Cu.-Ft.) 0.636, Capacity (ML) 18,000, Programmable No, Temp. Uniformity +/-5 Degrees C, Preheat Time 70 min, Chamber Material Refratory Ceramic, Door Material Ceramic, Housing Material Steel
