Shop CARBOLITE

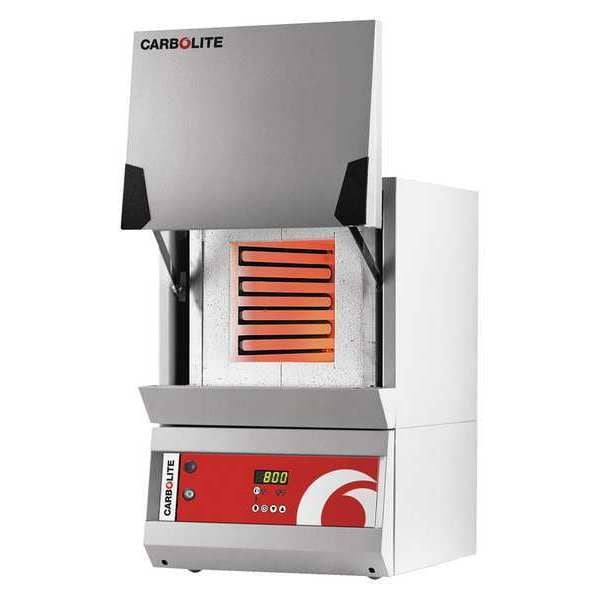

Lab Furnace, 1200C, 5L, 208/240V, 60 Hz

  • Mfr # CWF1205-230SN
  • Zoro # G2623741
product price:
$
6,240.99
/ea
Free Shipping & Returns

Key Features

Overall Depth
19 1/4 in
Overall Height
23 in
Overall Width
14 3/4 in
Convection Type
Gravity
Capacity
0.18 cu ft
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
CWF1205-230SN
Zoro #
G2623741
UPC #
-
Country of Origin
United Kingdom

Dimensions

Overall Depth
19 1/4 in
Overall Height
23 in
Overall Width
14 3/4 in
Chamber Width
5.51 in
Chamber Depth
9.84 in
Manufacturers Warranty Length
2 yr
Inside Usable Dimensions
5.25"H x 5.5"W x 10"D
Overall Dimensions
23"H x 14.75"W x 19"D
Chamber Height
5.31 in
Interior Height
5 1/4 in
Interior Depth
9 3/4 in
Interior Width
5 1/2 in
Fits Chest Size
Energy Efficient Low Thermal Mass Insulation

Details

Item
CWF Chamber Furnace
Convection Type
Gravity
Capacity
0.18 cu ft
Volume
0.18 cu ft
Wattage
2,400 W
Voltage
208/240V
Features
Energy Efficient Low Thermal Mass Insulation
Standards
CE
Programmable
Not Programmable
Housing Material
Steel
Hz
60 Hz
Includes
Single Ramp
Temp. Uniformity
+/-5 Degrees C
Capacity (ML)
5,000
Temp. Range (F)
2,192 Degrees F
Power Consumption
2400 Watts
Chamber Material
Refratory Ceramic
Material
Resistive, Wire-Wound Heating Elements, Low Mass Ceramic Insulation
Special Features
35 Minute Heat-Up Time, Vertical Lift Door
Preheat Time
35 min
Watts
800 W
Temp. Range (C)
1,200 Degrees C
Thermostat
Digital, Single Set-Point Controller, Type R Thermocouple
Temp. Range
Up to 1,100 Degrees C
Door Material
Ceramic
Power Requirement
208/240V, 50/60 Hz, 1-Phase
Number of Doors
1
Capacity (Cu.-Ft.)
0.177
Frequency
60 Hz
Housing Finish
Zinc Plated
Temperature Setting - Maximum
1,200 Degrees C
Interior Material
Ceramic
Product Type
CWF Chamber Furnace
Display Type
Digital
Timer Duration - Maximum
51 min
Temperature Uniformity
+/-5 Degrees C
Control Type
PID Temperature
Vacuum Pump Required
No
Number of Shelves Included
0
Temperature Setting - Minimum
Ambient +20 Degrees C
Number of Shelves
0
Color
Gray
Number of Displays
1
Plug Type
No Plug Provided
Number of Temperature Settings
Any Temperature Throughout the Full Range
Temperature Accuracy Tolerance
+/-1 Degrees C

Description

CWF Chamber Furnace, Convection Type Gravity, Temp. Range (C) 1200 Degrees , Temp. Range (F) 2192 Degrees , Overall Height 23 in, Overall Width 14 3/4 in, Overall Depth 19 1/4 in, Chamber Height 5.31 in, Chamber Width 5.51 in, Chamber Depth 9.84 in, Hz 60, Voltage 208/240V, Watts 800 W, Capacity (Cu.-Ft.) 0.177, Capacity (ML) 5,000, Programmable Not Programmable, Temp. Uniformity +/-5 Degrees C, Preheat Time 35 min, Chamber Material Refratory Ceramic, Door Material Ceramic
