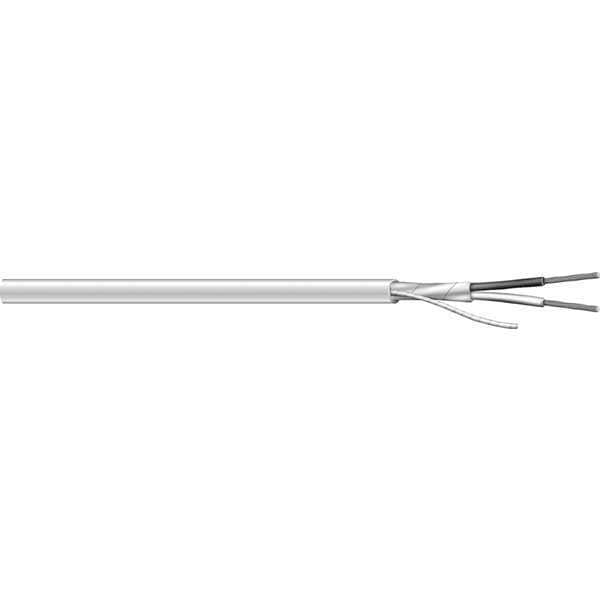

Comm Cable, Shielded, 20/4, 1000 Ft.

product price: $434.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Fire Rating - Data Cable Commercial
  • Number of Conductors 4
  • Shielded Shielded
  • Total Number of Conductors - Data Cable 4 (0 Pair)
  • Length 1000 ft.
See all product information

Product Information

Dimensions

Length 1000 ft.
Conductor Size - Data Cable 20 AWG
Spool Length 1,000 ft
Nominal Outside Dia. 0.234 in
Conductor Size 20 AWG
Cable Length 1,000 ft
Outside Diameter 0.2 in

Details

Item - Data Cable Communication Cable
Item Communication Cable
Fire Rating - Data Cable Commercial
Number of Conductors 4
Shielded Shielded
Total Number of Conductors - Data Cable 4 (0 Pair)
Solid / Stranded Stranded
Jacket Color Gray
Jacket Material PVC
Application - Communication Cable Audio Systems, Broadcast Systems, Computer Systems, Control Systems
Suggested Voltage Rating - Data Cable 300 V
Package Type - Data Cable Reel in a Box
Standards CE 2006/95/EC, CSA CMH, UL 70,000 BTU Vertical Tray Flame Test, CSA CMH Flame Test, RoHS Compliant, UL Style 2092, UL Style 2093, UL Style 2094, UL Style 2106, UL Style 2107, UL Style 2464
NEC Article 800, CM
NEC Article and Type 800 CM
Temp. Range -4 Degrees to 167 Degrees F
Insulation Material PE
Application Audio Systems, Computer Systems, Control Systems
Shielded / Unshielded Shielded
Cable Sub-Category Multi-Conductor
Shielding Material 100% Aluminum/Polyester Flexfoil
Jacket Material - Wire and Cable PVC
Package Type Reel in a Box
Maximum Operating Temperature 167 Degrees F
Conductor Gauge 20 AWG
Solid/Stranded Stranded
Number of Strands 7
Fire Rating Commercial
Product Type Communication Cable
Minimum Operating Temperature -4 Degrees F
Maximum Capacitance 36.5 pf/ft
Number of Pairs 0
Maximum Voltage Rating 300 V

Description

Communication Cable, Cable Length 1,000 ft, Fire Rating Commercial, Number of Strands 7, Conductor Gauge 20 AWG, Insulation Material PE, Jacket Color Gray, Jacket Material PVC, Shielded Shielded, Shielding Material 100 Percent Aluminum/Polyester Flexfoil, Solid/Stranded Stranded, Number of Conductors 4, Outside Diameter 0.2 in, Package Type Reel in a Box, Application Audio Systems, Computer Systems, Control Systems, Maximum Voltage Rating 300 V, NEC Article and Type 800 CM, Number of Pairs 0
