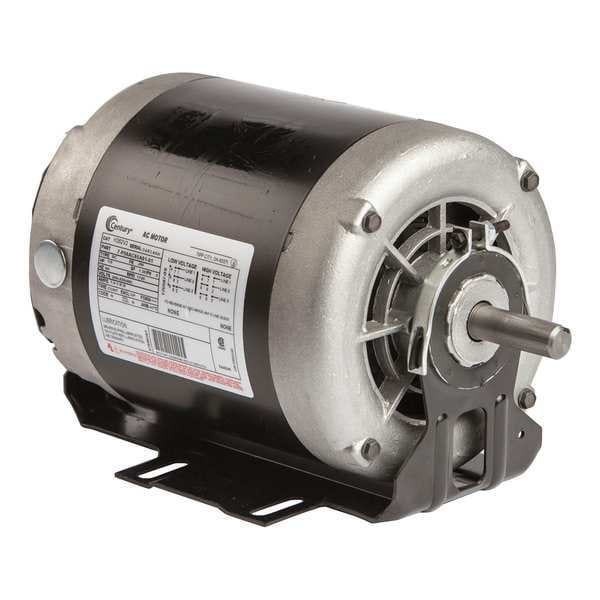

Century 3-Phase Belt Drive Motor, 1/3 HP, 56 Frame, 200-230/460V AC Voltage, 1,725 Nameplate RPM H262V2 - main

3-Phase Belt Drive Motor, 1/3 HP, 56 Frame, 200-230/460V AC Voltage, 1,725 Nameplate RPM

  • Mfr # H262V2

  • Zoro # G3934926

product price:  $330.99
/ea
Free Shipping & Returns

Key Features

Motor Design
3-Phase
Motor Enclosure Design
Open Dripproof
HP
1/3
No. of Speeds
1
RPM Range
1,701-1,800
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
H262V2
Zoro #
G3934926
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
5/8 in
Body Dia.
6 1/2 in
Resilient Ring Dia.
2 1/2 in
Overall Length
11 1/16 in
Shaft Length
1 15/16 in
Length Less Shaft
9 1/8 in

Details

Item
Belt Drive Motor
Motor Design
3-Phase
Motor Enclosure Design
Open Dripproof
HP
1/3
No. of Speeds
1
RPM Range
1,701-1,800
Nameplate RPM
1,725
Voltage
200-230/460V AC
Frame
56
Motor Mounting Type
Cradle Base
Motor Thermal Protection
None
Motor Service Factor
1.35
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 200-230V AC, 200V AC
Phase
Three
Motor Application
HVAC/R
Motor Sub Application
Belt Drive Fan/Blower
Duty
Continuous
Frame Material
Rolled steel
Hz
60 Hz
Ring to Ring Center
8 5/8 in
Motor Frame Material
Steel
Motor Bearings
Ball
Max. Ambient Temp.
104 Degrees F
Full Load Amps
1.4-1.6/0.80 A
Motor Mounting Position
All Angle
Ins. Class
B
Standards
CSA, UL Recognized
Motor Shaft Rotation
CW/CCW
Nominal Efficiency
65.8 %
Weight
21 lb
Usable @ 208V
Yes
Duty Cycle
Continuous
Usable @ 200V
Yes
NEMA Design
N
Application
Pumps, Blowers, Conveyors, Industrial Duty

Description

Fan and Blower Motor, Three Phase, Motor Design Three-Phase, 1/3 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 200-230/460V AC, 1.4-1.6/0.80 A Full Load Amps, 56J Frame, Usable @ 208V Usable at 208V, Usable @ 200V Usable at 200V, 60 Hz Hz, Motor Service Factor 1.35, Motor Thermal Protection None, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Cradle Base
