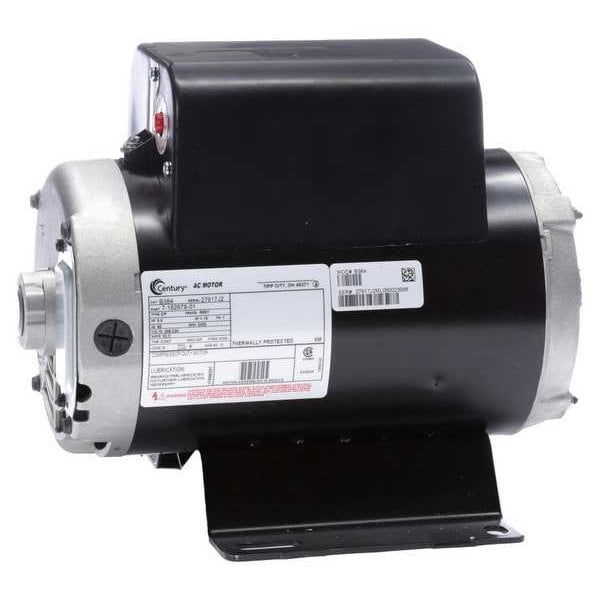

Air Compressor Motor, 5 hp, 3450 RPM
Mfr # B384
Zoro # G815190733
product price: $464.99
/ea
Free Shipping & Returns
Key Features
Motor Design
Capacitor-Start
HP
5 hp
RPM Range
3,001-3,600
Voltage
208-230V AC
Frame
R56Y
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
B384
Zoro #
G815190733
UPC #
786674012401
Country of Origin
Mexico
Dimensions
Shaft Dia.
7/8 in
Shaft Length
2 1/4 in
Overall Length
14 9/16 in
Length Less Shaft
12 1/4 in
Manufacturers Warranty Length
18 mo
Description
Air Compressor Motor, Single Phase, Motor Design Capacitor-Start, 5 hp HP, Nameplate RPM 3,450 RPM, No. of Speeds 1, Voltage 208-230V AC, Full Load Amps 22.0 A, 56Y Frame, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection Manual, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CCWSE, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal, Motor Frame Material Steel, Shaft Dia. 7/8 in
