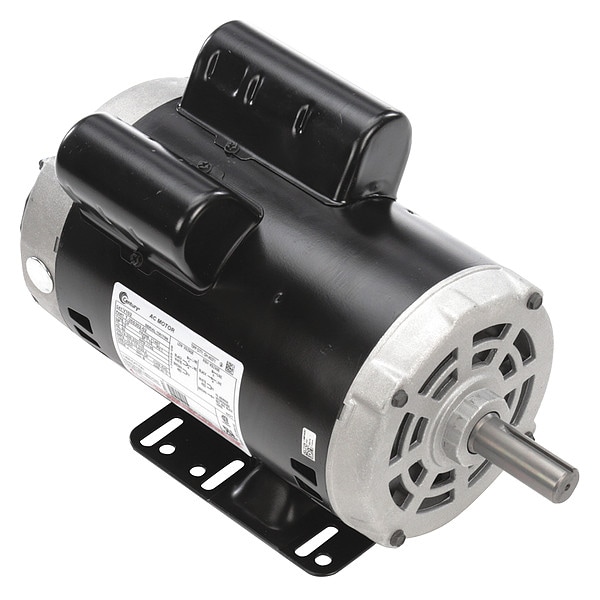

Capacitor-Start/Run General Purpose Motor, 2 hp HP, 145T Frame, 208-230/115V AC Voltage
Mfr # V102
Zoro # G3260936
product price:Â
$
623.99
/ea
Free Shipping & Returns
Key Features
Motor Design
Capacitor-Start/Run
Motor Enclosure Design
Open Drip Proof
HP
2 hp
No. of Speeds
1
RPM Range
1,701-1,800
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- V102
- Zoro #
- G3260936
- UPC #
- -
- Country of Origin
- Mexico
Dimensions
- Shaft Dia.
- 7/8 in
- Manufacturers Warranty Length
- 1 yr
- Shaft Length
- 2 5/16 in
- Body Dia.
- 6 1/2 in
- Overall Length
- 14 5/16 in
- Length Less Shaft
- 12 in
- Frame Size
- 145T
- Shaft Diameter
- 7/8 in
- Wire Rope Length
- 14 5/16 in
- Length
- 14 5/16 in
Description
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 2 hp HP, Nameplate RPM 1,745 RPM, No. of Speeds 1, Voltage 208-230/115V AC, Full Load Amps 20.4/10.2-10.0 A, 145T Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CCWSE, Motor Mounting Type Rigid Base
