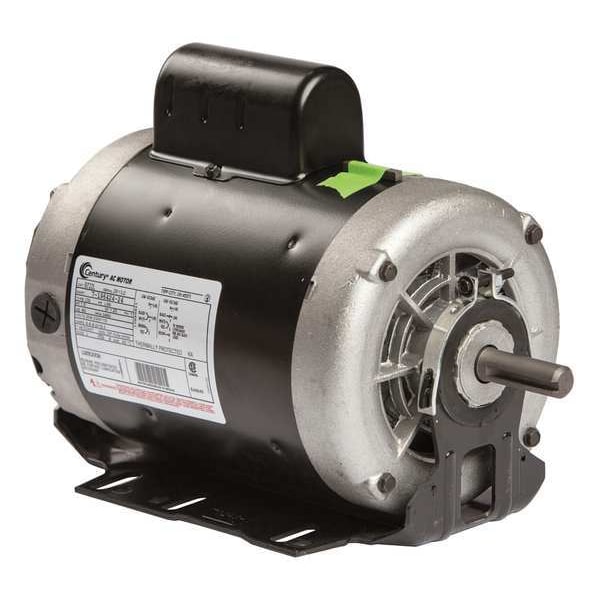

Century Capacitor-Start Belt Drive Motor, 1 1/2 HP, 56 Frame, 115/208-230V AC Voltage, 3,450 Nameplate RPM B722L - main

Capacitor-Start Belt Drive Motor, 1 1/2 HP, 56 Frame, 115/208-230V AC Voltage, 3,450 Nameplate RPM

  • Mfr # B722L

  • Zoro # G0667581

product price:  $499.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Capacitor-Start
Motor Enclosure Design
Open Dripproof
HP
1 1/2
No. of Speeds
1
RPM Range
3,001-3,600
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
B722L
Zoro #
G0667581
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
5/8 in
Shaft Length
1 15/16 in
Resilient Ring Dia.
2 1/2 in
Overall Length
12 3/16 in
Body Dia.
6 1/2 in
Length Less Shaft
10 1/4 in

Details

Item
Belt Drive Motor
Motor Design
Capacitor-Start
Motor Enclosure Design
Open Dripproof
HP
1 1/2
No. of Speeds
1
RPM Range
3,001-3,600
Nameplate RPM
3,450
Voltage
115/208-230V AC
Frame
56
Motor Mounting Type
Cradle Base
Motor Thermal Protection
Auto
Motor Service Factor
1.2
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC
Phase
Single
Motor Application
HVAC/R
Motor Sub Application
Belt Drive Fan/Blower
Ring to Ring Center
11 5/8 in
Standards
CSA, UL Recognized
Ins. Class
B
Duty
Continuous
Motor Bearings
Ball
Hz
60 Hz
Motor Frame Material
Steel
Max. Ambient Temp.
104 Degrees F
Frame Material
Steel
Motor Shaft Rotation
CW/CCW
Full Load Amps
8.6-8.0/16.0 A
Motor Mounting Position
All Angle
Duty Cycle
Continuous
Usable @ 208V
Yes
Weight
37 lb
Usable @ 200V
No

Description

Fan and Blower Motor, Single Phase, Motor Design Capacitor-Start, 1 1/2 hp HP, Nameplate RPM 3,450 RPM, No. of Speeds 1, Voltage 115/208-230V AC, 8.6-8.0/16.0 A Full Load Amps, 56 Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.2, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Cradle Base
