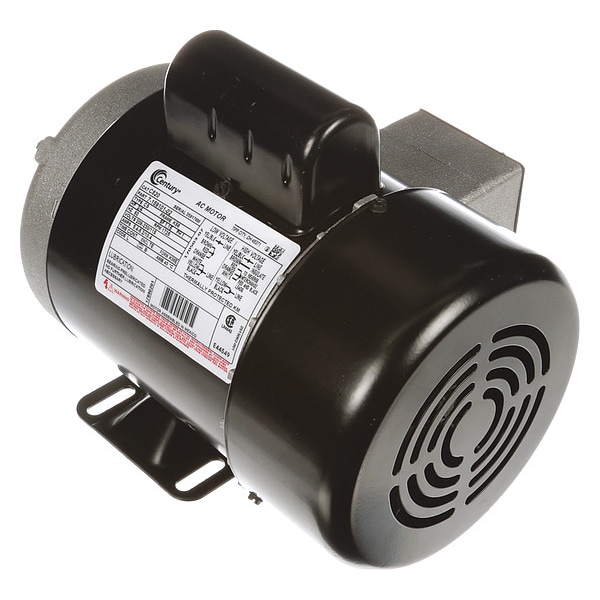

Capacitor-Start Farm Duty Motor, 3/4 HP, K56 Frame, 115/208-230V AC Voltage, 1,725 Nameplate RPM
Mfr # C520
Zoro # G0791169
product price:Â
$
556.99
/ea
Free Shipping & Returns
Key Features
Motor Design
Capacitor-Start
Motor Enclosure Design
Totally Enclosed Fan Cooled
HP
3/4 hp
No. of Speeds
1
RPM Range
1,701-1,800
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- C520
- Zoro #
- G0791169
- UPC #
- -
- Country of Origin
- Mexico
Dimensions
- Shaft Dia.
- 5/8 in
- Manufacturers Warranty Length
- 1 yr
- Overall Length
- 12 5/8 in
- Shaft Length
- 1 15/16 in
- Length Less Shaft
- 10 11/16 in
- Wire Rope Length
- 12 5/8 in
- Length
- 12 5/8 in
Description
Farm Duty Motor, Single Phase, Motor Design Capacitor-Start, 3/4 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 5.4-5.2/10.4 A, 56 Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection Manual, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type Rigid Base
