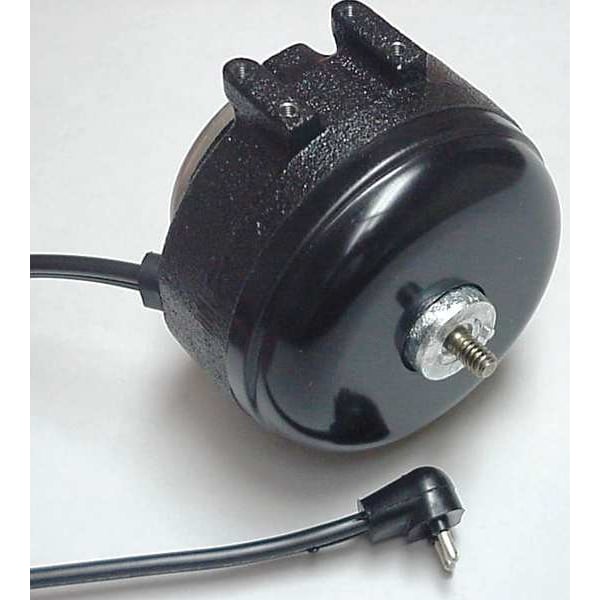

Unit Bearing Motor, 1/135 hp

  • Mfr # SPFBC51
  • Zoro # G2960894
product price:
$
38.99
/ea

Key Features

Motor Sub Application
Refrigerator/Freezer
Output Watts
5 W
HP
1/150
RPM Range
1,401-1,500
Voltage Compatibility
115V AC, 208V AC to 230V AC, 115V AC, 230V AC, 115V AC, 120V AC, 240V AC, 120V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
SPFBC51
Zoro #
G2960894
UPC #
-
Country of Origin
United States

Dimensions

Cord Length
13 in
Body Dia.
3 1/2 in
Shaft Dia.
1/4 in
Bolt Circle Dia.
2 13/16 in
Overall Length
2 7/8 in
Length Less Shaft
2 1/2 in
Shaft Length
3/8 in
Stud Size
#8-36
Body Diameter
3.5 in
Shaft Diameter
1/4 in
Bolt Circle Diameter
2 13/16 in
Frame Size
Non-Standard
Wire Rope Length
2 7/8 in
Length
2 7/8 in

Details

Motor Sub Application
Refrigerator/Freezer
Output Watts
5 W
HP
1/150
RPM Range
1,401-1,500
Voltage Compatibility
115V AC, 208V AC to 230V AC, 115V AC, 230V AC, 115V AC, 120V AC, 240V AC, 120V AC
Phase
Single
Voltage
115V AC
Motor Shaft Rotation
CWLE
Nameplate RPM
1,500
Frame
Non-Standard
Frame Material
Cast Iron
Includes
Speed Nut, Mounting Screws
Motor Design
Shaded Pole
Ins. Class
B
Motor Frame Material
Cast Iron
Max. Ambient Temp.
40 Degrees C
Motor Bearings
Unit
Standards
Meets UL and Canadian Standards for Safety
Motor Mounting Type
Rear/Foot
Motor Mounting Position
All Angle
Motor Shaft Design
Threaded
Motor Application
HVAC/R
Motor Thermal Protection
Impedance
Motor Service Factor
1
Plug Type
Round 2 Pin
Hz
50/60 Hz
Motor Enclosure Design
Totally Enclosed Air-Over
Item
Unit Bearing Motor
Full Load Amps
0.35 A
No. of Speeds
1
Capacitor Required
Capacitor Not Required
Usable @ 200V
Not Usable at 200V
Stud Quantity
8
Features
Cool running, Quiet Operation, Thick Film Lubricating System for Long Life and Dependability
Usable @ 208V
Not Usable at 208V
Finish
Black Electro-Coat
Mounting Holes
11 Total (3 on Rear, 8 on Feet)
Application
Condenser Fan
Full Load Current @ 60 Hz
0.35 A
Mounting Position
Horizontal
Wattage
5 W
Shaft Design
Threaded
Motor Enclosure Type
Totally Enclosed Air-Over
Drive Type
Direct Drive
Sub Application
Unit Bearing
Ambient Temperature - Maximum
40 Degrees C
Number of Speeds
1
Insulation Class
B
Frequency
60/50 Hz
Product Type
Unit Bearing Motor
Bearing Type
Unit

Description

Unit Bearing Motor, Single Phase, Motor Design Shaded Pole, 1/150 HP, Nameplate RPM 1,500, No. of Speeds 1, Voltage 115V AC, 0.35 A Full Load Amps, Non-Standard Frame, Output Watts 5 W, 60/50 Hz Hz, Usable @ 208V No, Usable @ 200V No, Motor Service Factor 1, Motor Thermal Protection Impedance, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CWLE, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Rear/Foot, Motor Frame Material Cast Iron
