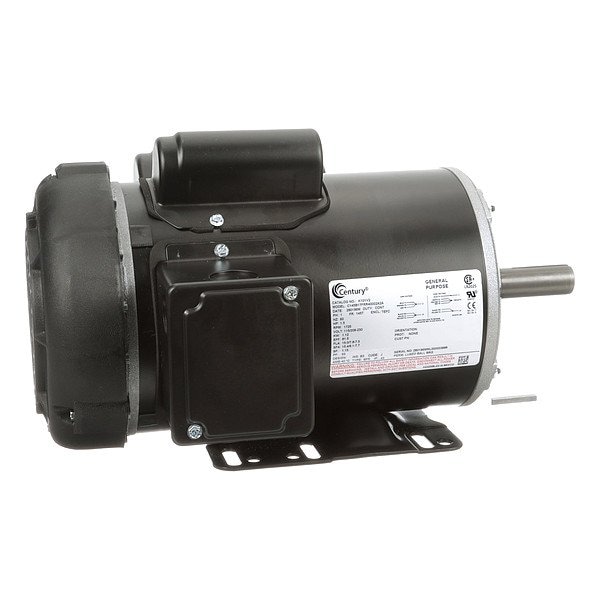

Capacitor-Start General Purpose Motor, 1 1/2 hp HP, 145T Frame, 115/208-230V AC Voltage
Mfr # K101V2
Zoro # G211931046
product price:Â $814.99
/ea
Free Shipping & Returns
Key Features
Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
Rigid Base
HP
1 1/2 hp
RPM Range
1725
Voltage
115/208-230V AC
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
K101V2
Zoro #
G211931046
UPC #
786674074966
Country of Origin
Mexico
Dimensions
Shaft Length
2 1/4 in
Shaft Dia.
7/8 in
Length Less Shaft
12 7/16 in
Overall Length
14 11/16 in
Stud Size
#10-32
Mounting Stud Length
9 7/8 in
Bolt Circle Dia.
5 15/16 in
Manufacturers Warranty Length
1 yr
Description
Farm Duty Motor, Single Phase, Motor Design Capacitor-Start/Run, 1 1/2 hp HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 15.0/7.8-7.5 A, 145T Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CCWSE, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type Rigid Base
