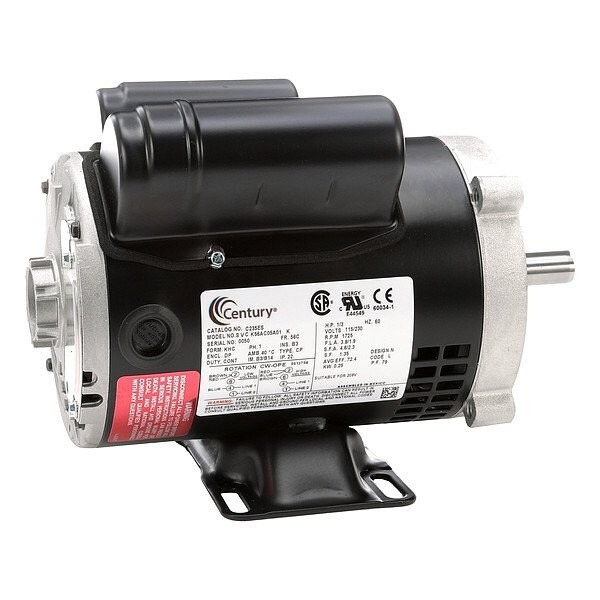

Capacitor-Start/Run General Purpose Motor, 1/3 hp HP, 56C Frame, 115/230V AC Voltage
Mfr # C235ES
Zoro # G112192027
product price:Â $493.99
/ea
Free Shipping & Returns
Key Features
Motor Enclosure Design
Open Drip Proof
Motor Mounting Type
C-Face, Rigid Base
HP
1/3 hp
RPM Range
1725
Voltage
115/230V AC
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- C235ES
- Zoro #
- G112192027
- UPC #
- 786674072115
- Country of Origin
- Mexico
Dimensions
- Overall Length
- 10 15/16 in
- Length Less Shaft
- 8 7/8 in
- Shaft Dia.
- 5/8 in
- Shaft Length
- 2 1/16 in
- Frame Size
- 56C
- Shaft Diameter
- 5/8 in
- Wire Rope Length
- 10 15/16 in
Description
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 1/3 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 3.8/1.9 A, 56C Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.35, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW, Motor Mounting Type C-Face, Rigid Base
