Shop CENTURY

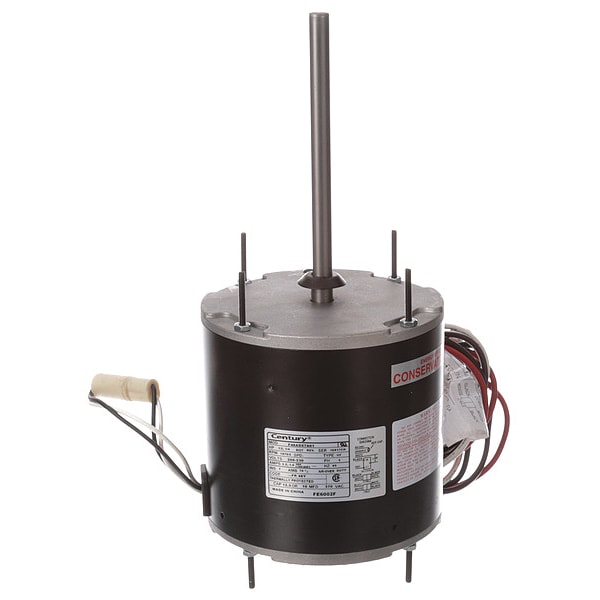

Condenser Fan Motor, 1,075 RPM, 0.37 kW

  • Mfr # FE6002F
  • Zoro # G0793978
product price:
$
179.99
/ea
Free Shipping & Returns

Key Features

Frame
48
HP
1/2, 1/4 HP
Motor Application
OEM Replacement
Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Totally Enclosed
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
FE6002F
Zoro #
G0793978
UPC #
-
Country of Origin
India
Frame
48
HP
1/2, 1/4 HP
Item
Motor
Motor Application
OEM Replacement
Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Totally Enclosed
Motor Mounting Type
Extended Studs
Motor Shaft Rotation
Reversible
Motor Sub Application
Condenser Fan Motor
Motor Thermal Protection
Auto
Nameplate RPM
1075 rpm
No. of Speeds
2
Number of Shafts
1
Phase
Single
RPM Range
1,001-1,100
Voltage
208V AC to 230V AC
Motor Bearings
Ball
Ins. Class
F
Max. Ambient Temp.
70 Degrees C
Duty
Air Over
Full Load Amps
3.2, 1.6A
Capacitor Required
Included
Standards
CSA Certified, UL Listed
Motor Shaft Design
Double Flat
Hz
60 Hz
Motor Service Factor
1
Application
Condenser Fan
Voltage Compatibility
208V AC, 230V AC
Includes
(4) #10 Screws, (4) #8 Screws, (4) Nuts, Capacitor Polybag, Clamp (2518746-001)
Usable @ 208V
Usable at 208V
Motor Mounting Position
All Angle
Motor Frame Material
Steel
Stud Quantity
4
Usable @ 200V
Usable at 200V
Weight
17 lb
Bearing Protection
Water Slinger
Inverter Rated
No
Output Watts
0.37 kW
Ambient Temperature - Maximum
70 Degrees C
Full Load Current @ 60 Hz
1.6/3.2 A
Shaft Design
Double Flat
Sub Application
Condenser Fan
Motor Enclosure Type
Totally Enclosed Air-Over
Frame Material
Steel
Wattage
370 W
Product Type
Condenser Fan Motor
Nameplate Service Factor @ 60 Hz
1
Inverter Rating
Not Inverter Rated
Bearing Type
Ball
Mounting Position
All Angle
Insulation Class
F
Number of Speeds
2
Frequency
60 Hz
Drive Type
Direct Drive

Description

Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/2, 1/4 HP, Nameplate RPM 1,075, No. of Speeds 2, Voltage 208-230V AC, 1.6 A, 3.2 A Full Load Amps, 48 Frame, Output Watts 0.37 kW, 60 Hz Hz, Usable @ 208V Yes, Usable @ 200V Yes, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class F, Max. Ambient Temp. 70 Degrees C, Motor Shaft Rotation CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Frame Material Steel, Inverter Rated No
