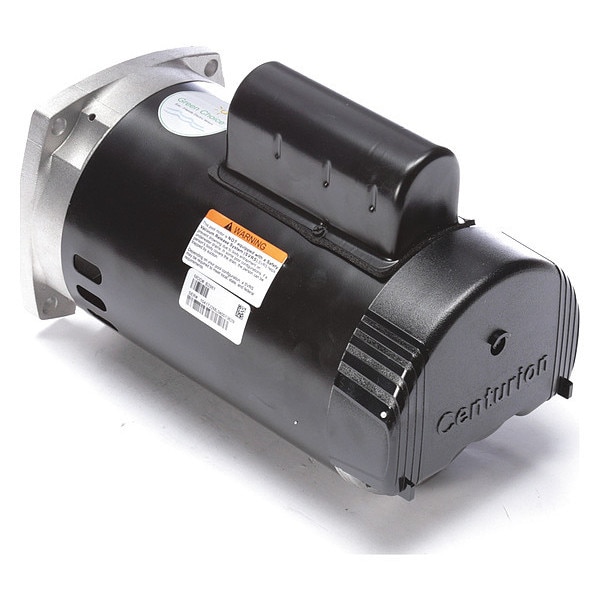

Pool Pump Motor, Capacitor-Start/Run, 1/10, 3/4 HP, 56Y Frame, 3,450/1,725 Nameplate RPM

  • Mfr # B2981

  • Zoro # G4482642

product price:  $502.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Capacitor-Start/Run
Motor Enclosure Design
Open Dripproof
HP
1/10, 3/4
RPM Range
3,001-3,600
Motor Service Factor
1.67
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
B2981
Zoro #
G4482642
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Length
1 in
Shaft Dia.
5/8 in
Length Less Shaft
13 1/2 in
Bolt Circle Dia.
7 1/8 in
Overall Length
14 3/8 in
Height
11 in
Shaft Dia. (In.)
5/8
Bolt Circle Diameter
7 1/8 in
Shaft Diameter
5/8 in
Frame Size
56Y
Body Diameter
6.5 in

Details

Item
Square Flange Pool Pump Motor
Motor Design
Capacitor-Start/Run
Motor Enclosure Design
Open Dripproof
HP
1/10, 3/4
RPM Range
3,001-3,600
Motor Service Factor
1.67
Nameplate RPM
3,450/1,725
Frame
56Y
Motor Shaft Rotation
CCWSE
Phase
Single
Voltage
115V AC
Motor Mounting Type
Face
Full Load Amps
12.2/2.00 A
Finish
Black
Motor Sub Application
Pool and Spa Pump
Shaft Material
303 Stainless Steel
Shaft
Threaded 1/2-20 UNF-2A RH
Ins. Class
F
Motor Efficiency Group
Energy Efficient
Motor Application
Pump
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Standards
CSA (LR4642), UL (E44549)
Max. Ambient Temp.
50 Degrees C
Motor Bearings
Ball
Motor Thermal Protection
Auto
Hz
60 Hz
No. of Speeds
2
Motor Mounting Position
Horizontal
Max. SF Amps
12.2
Motor Frame Material
Steel
Weight
32 lb
Usable @ 200V
Not Usable at 200V
Usable @ 208V
Not Usable at 208V
Duty Cycle
Continuous
Motor Shaft Design
Threaded
Application
Pump
Frequency
60 Hz
Number of Wires
15
Product Type
Pump Motor
Mounting Position
Horizontal
Insulation Class
F
Frame Material
Steel
Number of Speeds
2
Service Factor Current
12.2 A
Bearing Type
Ball
Shaft Design
Threaded
Nameplate Service Factor @ 60 Hz
1.67
Full Load Current @ 60 Hz
12.2/2.0 A
Sub Application
Pool and Spa Pump
Ambient Temperature - Maximum
50 Degrees C
Motor Enclosure Type
Open Drip Proof

Description

Square Flange Pool Pump Motor, Bolt Circle Dia. 7 1/8 in, Duty Cycle Continuous, Finish Black, Frame 56Y, Hz 60 Hz, Full Load Amps 12.2/2.00, Height 11 in, HP 1/10, 3/4, Ins. Class F, Length Less Shaft 13 1/2 in, Max. Ambient Temp. 50 Degrees C, Max. SF Amps 12.2, Motor Application Pump, Motor Bearings Ball, Motor Design Capacitor-Start/Run, Motor Efficiency Group Energy Efficient, Motor Enclosure Design Open Dripproof, Motor Frame Material Steel

Restrictions

This item has been restricted from sale in the following states: CA, NY
