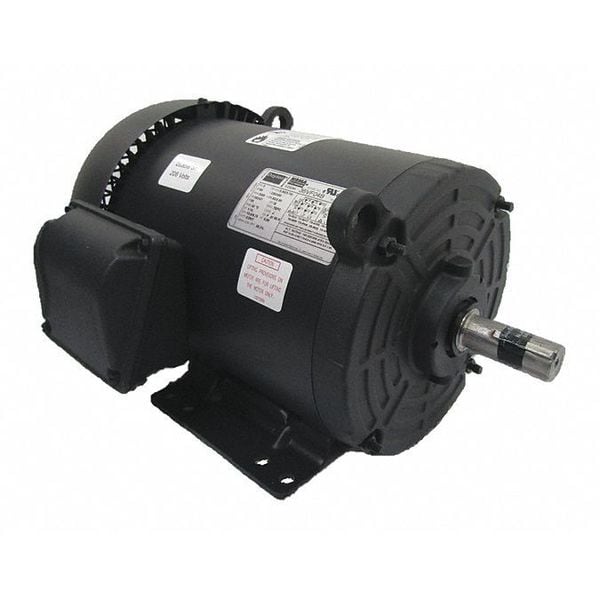

Three-Phase General Purpose Motor, 5 HP, 182/4T Frame, 230/460V AC Voltage, 3500 Nameplate RPM

The DAYTON - 36VF04 is a General Purpose Motor, classified under the category of 3-Phase AC Motors. This motor is widely used in industrial and commercial settings for power transmission and pneumatics applications. It effectively converts electrical energy into mechanical energy to operate various types of machinery. Its versatility makes it suitable for use across diverse sectors, from manufacturing lines to HVAC systems.

Key Features of the DAYTON - 36VF04 General Purpose Motor:

• CC Number: The unique identifier CC029A assigned by EASA helps classify and track this motor based on its design, specifications, and performance characteristics.
• Duty Cycle: This motor is designed for a continuous duty cycle, which may be beneficial in certain industrial applications.
• Frame: The frame size of 182/4T conforms to standard specifications ensuring compatibility and interchangeability.
• Full Load Amps: At full capacity, this motor draws a maximum current of 11.8/5.9 A which aids in determining power supply requirements for safe operation.
• Green Certification or Other Recognition: Being NEMA Premium Rated signifies that this motor meets certain environmental and energy efficiency standards making it an eco-friendly choice.
• Inverter Rated: Yes - This suggests that the motor could potentially be powered by a variable frequency drive for varying speed and torque controls
• Horsepower (HP): The rated output power of this motor is 5 HP. It's intended for use in various industrial applications.
• Motor Enclosure Design: The Totally Enclosed Fan Cooled design aims to shield internal components from environmental factors while facilitating cooling
