Shop CENTURY

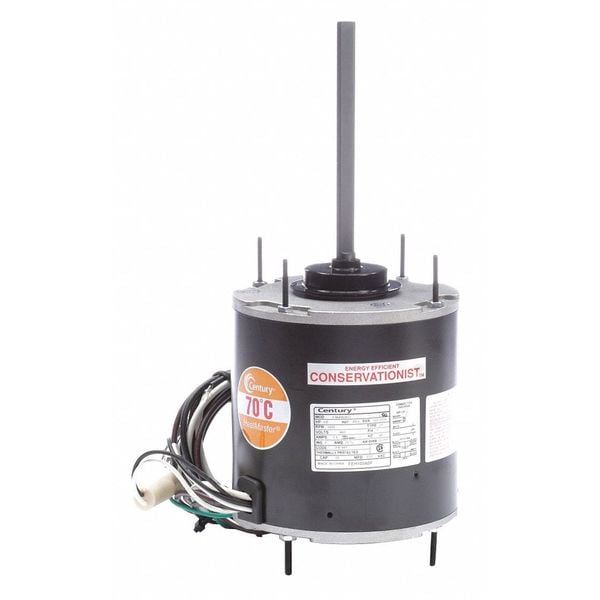

Condenser Fan Motor, 1/2 hp

  • Mfr # FEH1056SF
  • Zoro # G0456547
product price:
$
260.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Permanent Split Capacitor
Phase
Single
HP
1/2
RPM Range
1,001-1,100
No. of Speeds
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
FEH1056SF
Zoro #
G0456547
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
1/2 in
Shaft Length
6 1/2 in
Stud Size
#8-32
Lead Length
48 in
Length Less Shaft
6 1/2 in
Overall Length
13 in
Body Dia.
5 5/8 in
Mounting Stud Length
1 1/8 in
Bolt Circle Dia.
5 1/8 in
Shaft Diameter
1/2 in
Body Diameter
5.6 in
Bolt Circle Diameter
5 1/8 in
Frame Size
48
Mounting Stud Thread Size
#8-32
Wire Rope Length
13 in
Length
13 in

Details

Motor Design
Permanent Split Capacitor
Phase
Single
HP
1/2
RPM Range
1,001-1,100
No. of Speeds
1
Voltage
460V AC
Motor Shaft Rotation
CW/CCW
Frame
48
Motor Enclosure Design
Totally Enclosed Air-Over
Motor Mounting Type
Stud
Capacitor Required
Capacitor Not Included
Max. Ambient Temp.
70 Degrees C
Hz
60 Hz
Motor Bearings
Ball
Voltage Compatibility
200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 460V AC, 220V AC to 230V AC, 460V AC, 220V AC, 460V AC, 230V AC, 460V AC, 796V AC, 230V AC, 460V AC, 440V AC to 460V AC, 460V AC, 796V AC, 460V AC
Motor Thermal Protection
Auto
Stud Quantity
4
Nameplate RPM
1,075
Mounting Stud Pattern
3 5/8 in x 3 5/8 in
Motor Shaft Design
Double-Flat
Full Load Amps
1.5 A
Features
Auto Protector, Energy Efficient
Motor Mounting Position
All Angle
Motor Sub Application
Condenser Fan
Item
Condenser Fan Motor
Standards
UL Recognized and CSA Certified
Motor Application
HVAC/R
Ins. Class
F
Duty
Continuous
Motor Service Factor
1
Removable Base
Yes
Output Watts
370 W
Usable @ 200V
Not Usable at 200V
Motor Frame Material
Steel
Includes
Removable Base
Usable @ 208V
Not Usable at 208V
Motor Flange Type
Non-Ventilated
Replacement For
Mfr. No. 3738HS
Weight
19 lb
Mounting
Stud
Shaft Design
Double Flat
Frame Material
Steel
Sub Application
Condenser Fan
Wattage
370 W
Bearing Type
Ball
Nameplate Service Factor @ 60 Hz
1
Drive Type
Direct Drive
Full Load Current @ 60 Hz
1.5 A
Product Type
Condenser Fan Motor
Insulation Class
F
Frequency
60 Hz
Number of Speeds
1
Motor Enclosure Type
Totally Enclosed Air-Over
Ambient Temperature - Maximum
70 Degrees C
Flange Type
Non-Ventilated
Mounting Position
All Angle
Application
Condenser Fan

Description

Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/2 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 1, Voltage 460V AC, 1.5 A Full Load Amps, 48 Frame, Output Watts 370 W, 60 Hz Hz, Replacement For Mfr. No. 3738HS, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class F, Max. Ambient Temp. 70 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over
