Shop CENTURY

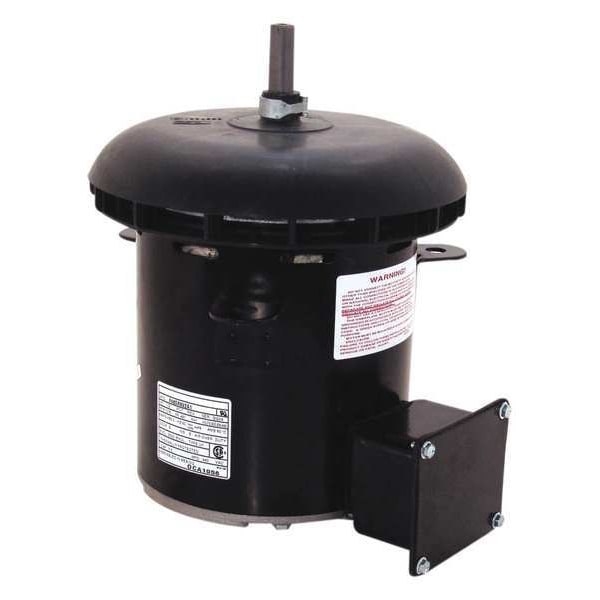

Condenser Fan Motor, 1/2 hp

  • Mfr # OCA1056
  • Zoro # G2214852
product price:
$
540.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Permanent Split Capacitor
Phase
Single
HP
1/2
RPM Range
1,001-1,100
No. of Speeds
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
OCA1056
Zoro #
G2214852
UPC #
-
Country of Origin
India

Dimensions

Length Less Shaft
8 3/16 in
Overall Length
9 3/4 in
Body Dia.
5.7 in
Shaft Dia.
1/2 in
Bolt Circle Dia.
7 in
Shaft Length
1 9/16 in
Lead Length
5 to 6"
Bolt Circle Diameter
7 in
Frame Size
48Y
Shaft Diameter
1/2 in
Body Diameter
5.7 in
Wire Rope Length
9 3/4 in
Length
9 3/4 in

Details

Motor Design
Permanent Split Capacitor
Phase
Single
HP
1/2
RPM Range
1,001-1,100
No. of Speeds
1
Voltage
200V AC to 230V AC, 460V AC
Motor Shaft Rotation
CW/CCW
Frame
48Y
Motor Enclosure Design
Open Air-Over
Motor Mounting Type
Lug
Motor Sub Application
Condenser Fan
Item
Condenser Fan Motor
Hz
60 Hz
Motor Thermal Protection
Auto
Capacitor Required
Capacitor Included
Voltage Compatibility
200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 200V AC to 230V AC, 200V AC, 208V AC to 230V AC, 460V AC, 208V AC, 220V AC, 460V AC, 230V AC, 460V AC, 230V AC, 240V AC, 460V AC
Motor Shaft Design
Flat
Replacement For
230
Nameplate RPM
1,075
Max. Ambient Temp.
60 Degrees C
Standards
CSA Certified, UL Recognized
Motor Application
OEM Replacement
Duty
Continuous
Motor Service Factor
1
Ins. Class
B
OEM Replacement Brand
Carrier/BDP
Application
Carrier/BDP
Motor Bearings
Ball
Number of Shafts
1
Full Load Amps
4.6/2.3 A
Weight
21 lb
Usable @ 208V
Usable at 208V
Motor Mounting Position
Vertical Shaft Down
Usable @ 200V
Usable at 200V
Motor Frame Material
Steel
Rotation
CW/CCW
Features
OEM Replacement for Carrier/BDP
Mounting
Lug
Number of Speeds
1
Shaft Design
Flat
Sub Application
Condenser Fan
Insulation Class
B
Nameplate Service Factor @ 60 Hz
1
Frame Material
Steel
Mounting Position
Vertical Shaft Down
Full Load Current @ 60 Hz
4.6/2.3 A
Bearing Type
Ball
Motor Enclosure Type
Open Air Over
Ambient Temperature - Maximum
60 Degrees C
Product Type
Condenser Fan Motor
Compatible Brand
Carrier/BDP

Description

Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/2 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 1, Voltage 200-230/460V AC, Full Load Amps 4.6/2.3 A, 48Y Frame, OEM Replacement Brand Carrier/BDP, Replacement For 230, Usable @ 208V Usable at 208V, Usable @ 200V Usable at 200V, 60 Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 60 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over
