Shop CENTURY

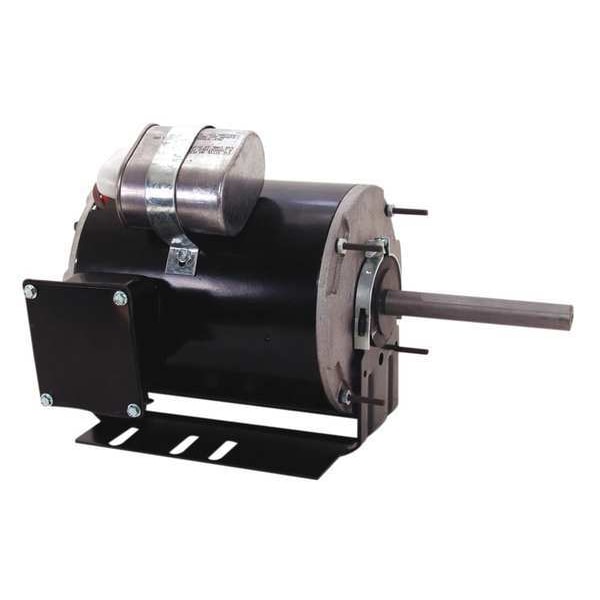

Condenser Fan Motor, 3/4 hp

  • Mfr # FB1076V1
  • Zoro # G0273201
product price:
$
396.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Permanent Split Capacitor
Phase
Single
HP
3/4
RPM Range
1,001-1,100
No. of Speeds
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
FB1076V1
Zoro #
G0273201
UPC #
-
Country of Origin
Mexico

Dimensions

Resilient Ring Dia.
2 1/4 in
Shaft Length
6 in
Length Less Shaft
8 3/4 in
Body Dia.
5 5/8 in
Stud Size
#8-32
Overall Length
13 3/4 in
Shaft Dia.
1/2 in
Mounting Stud Length
1 1/2 in
Shaft Diameter
1/2 in
Mounting Stud Thread Size
#8-32
Frame Size
48Y
Resilient Ring Diameter
2 1/4 in
Body Diameter
5.6 in
Wire Rope Length
13 3/4 in
Length
13 3/4 in

Details

Motor Design
Permanent Split Capacitor
Phase
Single
HP
3/4
RPM Range
1,001-1,100
No. of Speeds
1
Voltage
208V AC to 230V AC, 460V AC
Motor Shaft Rotation
CW/CCW
Frame
48Y
Motor Enclosure Design
Open Air-Over
Motor Mounting Type
Cradle Base
Nameplate RPM
1,075
Voltage Compatibility
200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 208V AC to 230V AC, 460V AC, 460V AC
Duty
Continuous
Motor Application
HVAC/R
Motor Service Factor
1
Features
Internal Conduit Box for Enclosed Wiring Connection
Nominal Efficiency
69 %
Motor Thermal Protection
Auto
Max. Ambient Temp.
60 Degrees C
Ring to Ring Center
8 5/16 in
Motor Shaft Design
Flat
Motor Bearings
Ball
Mounting Stud Pattern
3 5/8 in x 3 5/8 in
Motor Mounting Position
Vertical Shaft Up
Motor Sub Application
Condenser Fan
Hz
60 Hz
Standards
CSA Certified, UL Recognized
Item
Condenser Fan Motor
Capacitor Required
Capacitor Included
Stud Quantity
4
Ins. Class
B
Full Load Amps
5.0/2.5 A
Motor Frame Material
Steel
Usable @ 200V
Not Usable at 200V
Includes
Capacitor
Duty Cycle
Continuous
Conduit Box Location
Interior
Weight
27 lb
Usable @ 208V
Usable at 208V
Output Watts
560 W
Mounting
Cradle Base
Nameplate Service Factor @ 60 Hz
1
Motor Enclosure Type
Open Air Over
Shaft Design
Flat
Full Load Current @ 60 Hz
5.0/2.5 A
Ambient Temperature - Maximum
60 Degrees C
Sub Application
Condenser Fan
Number of Speeds
1
Frame Material
Steel
Wattage
560 W
Bearing Type
Ball
Mounting Position
Vertical Shaft Up
Frequency
60 Hz
Drive Type
Direct Drive
Application
Condenser Fan
Product Type
Condenser Fan Motor
Insulation Class
B

Description

Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 3/4 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 1, Voltage 208-230/460V AC, 5.0/2.5 A Full Load Amps, 48Y Frame, Output Watts 560 W, 60 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 60 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over
