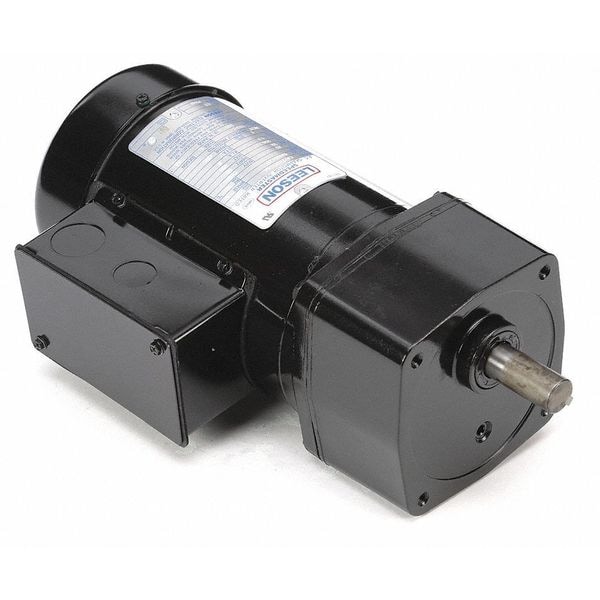

AC Gearmotor, 300 in-lb Max. Torque, 29 RPM Nameplate RPM, 208-230/460V AC Voltage, 3 Phase
- Mfr # 096066.00
- Zoro # G1838505
product price:Â
$
708.00
/ea
Free Shipping & Returns
Key Features
Gearmotor Voltage
208V AC to 230V AC, 460V AC
Gearmotor Phase
3
Gearmotor Type
AC Gearmotor
Max. Torque
300 in-lb
Gearmotor Shaft Type
Single
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 096066.00
- Zoro #
- G1838505
- UPC #
- 691720346464
- Country of Origin
- United States
Dimensions
- Length Less Shaft
- 11.45 in
- Keyway Size Type
- 0.18 sq in x 1 in
- Height (Dimension O)
- 5.16 in
- Shaft Length (Dimension V)
- 1.63 in
- Dimension N
- 2 in
- Dimension U
- 3/4 in
- Dimension X
- 3.32 in
- Keyway Size
- 0.18" Square x 1"
- Shaft Dia. (Dimension U)
- 3/4 in
- Dimension AB
- 4.25 in
- Dimension S
- 0.187 in
- Dimension C
- 13.07 in
- Dimension AA
- 0.88 in
- Overall Length
- 13.07 in
- Output Shaft Diameter
- 3/4 in
- Output Shaft Length
- 1 5/8 in
- Overall Width
- 4.29 in
- Overall Height
- 4.97 in
- Wire Rope Length
- 13.07 in
- Length
- 13.07 in
Description
AC Gearmotor, Number of Output Shafts 1, Motor Type 3-Phase, Motor Enclosure Totally Enclosed Fan-Cooled, Nameplate Speed 29 RPM, Maximum Torque 300 in-lb, Overhung Load Capacity 327 lb, Rotation CW/CCW, Mounting Orientation Horizontal, Vertical with Shaft Down, Operating Voltage 208-230/460V AC, Inverter Rated Yes, Gear Ratio 58:1, Brake Type None, Shaft Orientation Parallel, Motor Insulation Class F, Motor Duty Class Continuous, AGMA Gear Class Class 9, Application Inverter Duty
