Shop CENTURY

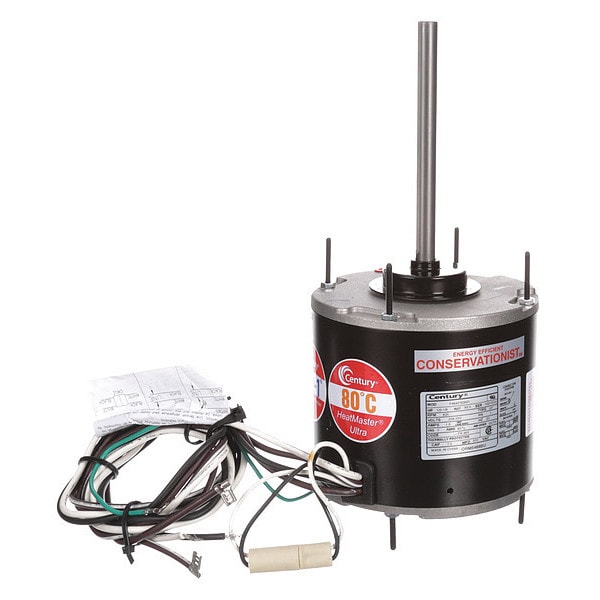

Condenser Fan Motor, 1/3 hp; 1/8 hp

  • Mfr # ORM5488BU
  • Zoro # G8795516
product price:
$
214.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Permanent Split Capacitor
Phase
Single
RPM Range
0-1,000
No. of Speeds
1
Voltage
208V AC to 230V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
ORM5488BU
Zoro #
G8795516
UPC #
-
Country of Origin
India
Motor Design
Permanent Split Capacitor
Phase
Single
HP
1/3 to 1/8
RPM Range
0-1,000
No. of Speeds
1
Voltage
208V AC to 230V AC
Motor Shaft Rotation
CW/CCW
Frame
48
Motor Enclosure Design
Totally Enclosed Air-Over
Motor Mounting Type
Stud
Features
Extended Thru-Bolts
Nameplate RPM
825
Motor Shaft Design
Double-Flat
Voltage Compatibility
115V AC, 208V AC to 230V AC, 200V AC to 230V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 277V AC, 208V AC to 230V AC, 440V AC, 208V AC to 230V AC, 460V AC, 208V AC to 230V AC, 208V AC to 240V AC
Motor Mounting Position
All Angle
Motor Application
HVAC/R
Motor Bearings
Ball
Mounting Stud Pattern
5 5/32 in
Item
Condenser Fan Motor
Hz
60 Hz
Motor Sub Application
Condenser Fan
Ins. Class
F
Duty
Continuous
Motor Service Factor
1
Full Load Amps
1.8 A
Standards
CSA Certified, UL Recognized
Motor Thermal Protection
Auto
Application
Condenser Fan
Capacitor Required
Capacitor Not Included
Max. Ambient Temp.
70 Degrees C
Stud Quantity
4
Usable @ 200V
Not Usable at 200V
Output Watts
250 W
Weight
16 lb
Motor Frame Material
Steel
Usable @ 208V
Usable at 208V
Removable Base
Yes
Includes
Belly Band, Removable Base
Motor Flange Type
Non-Ventilated
Mounting
Stud
Drive Type
Direct Drive
Frame Material
Steel
Wattage
250 W
Number of Speeds
1
Insulation Class
F
Motor Enclosure Type
Totally Enclosed Air-Over
Full Load Current @ 60 Hz
1.8 A
Shaft Design
Double Flat
Frequency
60 Hz
Sub Application
Condenser Fan
Mounting Position
All Angle
Nameplate Service Factor @ 60 Hz
1
Flange Type
Non-Ventilated
Efficiency Rating
Standard Efficiency (IE1)
Product Type
Condenser Fan Motor
Ambient Temperature - Maximum
70 Degrees C
Bearing Type
Ball

Description

Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/3 hp, 1/8 hp HP, Nameplate RPM 825 RPM, No. of Speeds 1, Voltage 208-230V AC, 1.8 A Full Load Amps, 48 Frame, Output Watts 250 W, 60 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class F, Max. Ambient Temp. 70 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Stud
