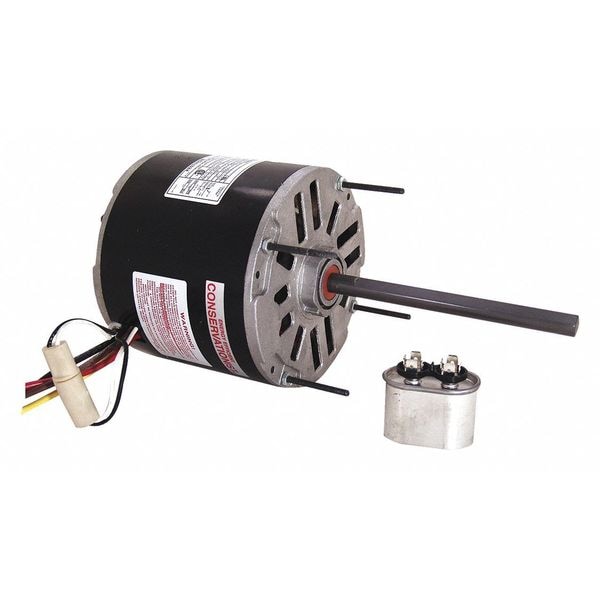

Condenser Fan Motor, 1/3 hp

  • Mfr # BDH1036
  • Zoro # G0875804
product price:
$
334.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Permanent Split Capacitor
Phase
Single
RPM Range
1,001-1,100
No. of Speeds
2
Voltage
460V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
BDH1036
Zoro #
G0875804
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
1/2 in
Lead Length
27 in
Body Dia.
5 5/8 in
Length Less Shaft
5 1/2 in
Stud Size
#8-32
Shaft Length
6 7/16 in
Overall Length
11 15/16 in
Bolt Circle Dia.
5 3/16 in
Mounting Stud Length
1 5/8 in
Shaft Diameter
1/2 in
Mounting Stud Thread Size
#8-32
Frame Size
48Y
Body Diameter
5.6 in
Bolt Circle Diameter
5 3/16 in
Wire Rope Length
11 15/16 in
Length
11 15/16 in

Details

Motor Design
Permanent Split Capacitor
Phase
Single
HP
1/3
RPM Range
1,001-1,100
No. of Speeds
2
Voltage
460V AC
Motor Shaft Rotation
CW/CCW
Frame
48Y
Motor Enclosure Design
Open Air-Over
Motor Mounting Type
Stud
Max. Ambient Temp.
60 Degrees C
Duty
Continuous
Item
Fan and Blower Motor
Standards
CSA Certified, UL Recognized
Ins. Class
B
Motor Thermal Protection
Auto
Motor Bearings
Ball
Full Load Amps
1.2 A
Voltage Compatibility
200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 460V AC, 220V AC to 230V AC, 460V AC, 220V AC, 460V AC, 230V AC, 460V AC, 796V AC, 230V AC, 460V AC, 440V AC to 460V AC, 460V AC, 796V AC, 460V AC
Motor Application
HVAC/R
Nominal Efficiency
61 %
Features
Extended Studs Shaft End, Hex Mounting Hub on Both Ends, Thermally Protected
Motor Mounting Position
All Angle
Capacitor Required
Capacitor Included
Nameplate RPM
1,075
Motor Sub Application
Condenser Fan
Stud Quantity
4
Hz
60 Hz
Motor Service Factor
1
Mounting Stud Pattern
3 5/8 in x 3 5/8 in
Motor Shaft Design
Double-Flat
Duty Cycle
Continuous
Weight
15 lb
Output Watts
250 W
Motor Frame Material
Steel
Usable @ 208V
Not Usable at 208V
Usable @ 200V
Not Usable at 200V
Mounting
Stud
Wattage
250 W
Motor Enclosure Type
Open Air Over
Full Load Current @ 60 Hz
1.2 A
Sub Application
Condenser Fan
Application
Fan/Blower
Product Type
Fan and Blower Motor
Shaft Design
Double Flat
Bearing Type
Ball
Ambient Temperature - Maximum
60 Degrees C
Mounting Position
All Angle
Nameplate Service Factor @ 60 Hz
1
Frame Material
Steel
Insulation Class
B
Frequency
60 Hz
Drive Type
Direct Drive

Description

Fan and Blower Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/3 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 2, Voltage 460V AC, 1.2 A Full Load Amps, 48Y Frame, Output Watts 250 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 60 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Stud
