Shop CENTURY

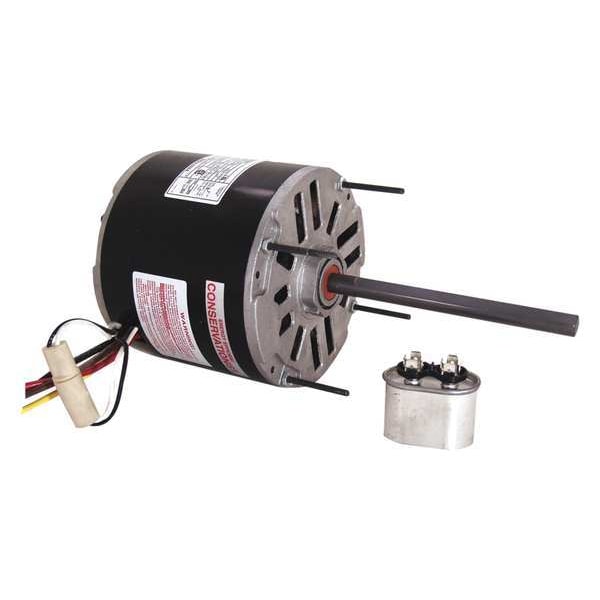

Condenser Fan Motor, 3/4 HP, 1075 rpm, 60Hz

  • Mfr # BDH1076
  • Zoro # G2002287
product price:
$
419.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Permanent Split Capacitor
Phase
Single
RPM Range
1,001-1,100
No. of Speeds
2
Voltage
460V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
BDH1076
Zoro #
G2002287
UPC #
-
Country of Origin
Mexico

Dimensions

Overall Length
12 5/8 in
Body Dia.
5 5/8 in
Length Less Shaft
6 3/16 in
Stud Size
#8-32
Shaft Length
6 7/16 in
Lead Length
27 in
Shaft Dia.
1/2 in
Mounting Stud Length
1 5/8 in
Bolt Circle Dia.
5 3/16 in
Mounting Stud Thread Size
#8-32
Shaft Diameter
1/2 in
Body Diameter
5.6 in
Bolt Circle Diameter
5 3/16 in
Frame Size
48Y
Wire Rope Length
12 5/8 in
Length
12 5/8 in

Details

Motor Design
Permanent Split Capacitor
Phase
Single
HP
3/4
RPM Range
1,001-1,100
No. of Speeds
2
Voltage
460V AC
Motor Shaft Rotation
CW/CCW
Frame
48Y
Motor Enclosure Design
Open Air-Over
Motor Mounting Type
Stud
Motor Application
HVAC/R
Max. Ambient Temp.
60 Degrees C
Ins. Class
B
Hz
60 Hz
Full Load Amps
2.2 A
Item
Fan and Blower Motor
Mounting Stud Pattern
3 5/8 in x 3 5/8 in
Motor Thermal Protection
Auto
Duty
Continuous
Standards
CSA Certified, UL Recognized
Voltage Compatibility
200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 460V AC, 220V AC to 230V AC, 460V AC, 220V AC, 460V AC, 230V AC, 460V AC, 796V AC, 230V AC, 460V AC, 440V AC to 460V AC, 460V AC, 796V AC, 460V AC
Motor Service Factor
1
Features
Extended Studs Shaft End, Hex Mounting Hub on Both Ends, Thermally Protected
Stud Quantity
4
Motor Sub Application
Condenser Fan
Nameplate RPM
1,075
Motor Shaft Design
Flat
Motor Mounting Position
Horizontal or Vertical Shaft Up
Capacitor Required
Capacitor Included
Motor Bearings
Ball
Nominal Efficiency
62 %
Output Watts
560 W
Weight
19 lb
Usable @ 200V
Not Usable at 200V
Motor Frame Material
Steel
Usable @ 208V
Not Usable at 208V
Duty Cycle
Continuous
Replacement For
Mfr. No. 3290
Mounting
Stud
Shaft Design
Flat
Insulation Class
B
Product Type
Fan and Blower Motor
Mounting Position
Horizontal/Vertical Shaft Up
Frequency
60 Hz
Full Load Current @ 60 Hz
2.2 A
Frame Material
Steel
Motor Enclosure Type
Open Air Over
Application
Fan/Blower
Ambient Temperature - Maximum
60 Degrees C
Nameplate Service Factor @ 60 Hz
1
Sub Application
Condenser Fan
Wattage
560 W
Drive Type
Direct Drive
Bearing Type
Ball

Description

Fan and Blower Motor, Single Phase, Motor Design Permanent Split Capacitor, 3/4 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 2, Voltage 460V AC, 2.2 A Full Load Amps, 48Y Frame, Output Watts 560 W, 60 Hz Hz, Replacement For Mfr. No. 3290, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 60 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over
