Shop CENTURY

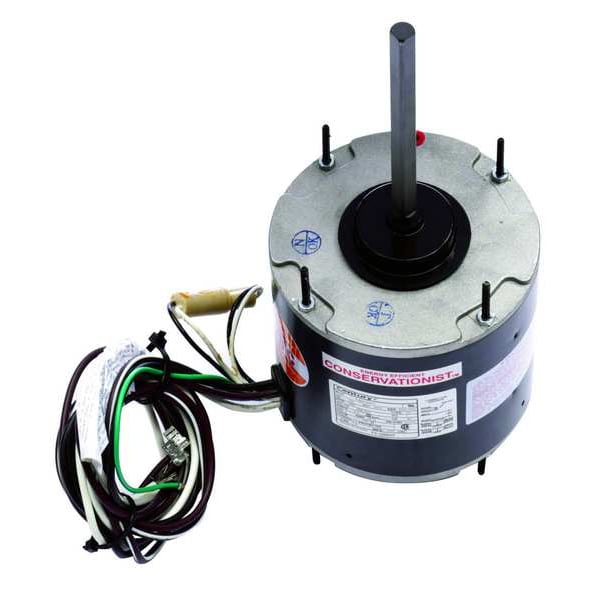

Condenser Fan Motor, 1/3 hp

  • Mfr # FE1038SF
  • Zoro # G2854871
product price:
$
244.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Permanent Split Capacitor
Phase
Single
HP
1/3
RPM Range
0-1,000
No. of Speeds
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
FE1038SF
Zoro #
G2854871
UPC #
-
Country of Origin
India

Dimensions

Overall Length
12 1/2 in
Lead Length
48 in
Shaft Length
6 1/2 in
Body Dia.
5 5/8 in
Stud Size
#8-32
Shaft Dia.
1/2 in
Length Less Shaft
6 in
Bolt Circle Dia.
5 1/8 in
Mounting Stud Length
1 1/16 in
Frame Size
48
Shaft Diameter
1/2 in
Bolt Circle Diameter
5 1/8 in
Mounting Stud Thread Size
#8-32
Body Diameter
5.6 in
Wire Rope Length
12 1/2 in
Length
12 1/2 in

Details

Motor Design
Permanent Split Capacitor
Phase
Single
HP
1/3
RPM Range
0-1,000
No. of Speeds
1
Voltage
208V AC to 230V AC
Motor Shaft Rotation
CW/CCW
Frame
48
Motor Enclosure Design
Totally Enclosed Air-Over
Motor Mounting Type
Stud
Motor Bearings
Ball
Stud Quantity
4
Item
Condenser Fan Motor
Motor Service Factor
1
Mounting Stud Pattern
3 5/8 in x 3 5/8 in
Max. Ambient Temp.
70 Degrees C
Features
Belly Band, Extended Studs Shaft End and Lead End, Mounting Holes in Shell, Thermally Protected
Motor Thermal Protection
Auto
Duty
Continuous
Motor Mounting Position
All Angle
Motor Application
HVAC/R
Hz
60 Hz
Ins. Class
F
Capacitor Required
Capacitor Not Included
Standards
CSA Certified, UL Recognized
Voltage Compatibility
115V AC, 208V AC to 230V AC, 200V AC to 230V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 277V AC, 208V AC to 230V AC, 440V AC, 208V AC to 230V AC, 460V AC, 208V AC to 230V AC, 208V AC to 240V AC
Motor Sub Application
Condenser Fan
Motor Shaft Design
Double-Flat
Full Load Amps
2.1 A
Nameplate RPM
825
Motor Frame Material
Steel
Weight
15 lb
Removable Base
Yes
Output Watts
250 W
Usable @ 208V
Usable at 208V
Replacement For
Mfr. No. 6303
Usable @ 200V
Not Usable at 200V
Duty Cycle
Continuous
Mounting
Stud
Mounting Position
All Angle
Number of Speeds
1
Frame Material
Steel
Shaft Design
Double Flat
Insulation Class
F
Frequency
60 Hz
Efficiency Rating
Standard Efficiency (IE1)
Drive Type
Direct Drive
Wattage
250 W
Application
Condenser Fan
Includes
Removable Base
Product Type
Condenser Fan Motor
Nameplate Service Factor @ 60 Hz
1
Bearing Type
Ball
Full Load Current @ 60 Hz
2.1 A
Ambient Temperature - Maximum
70 Degrees C
Sub Application
Condenser Fan
Motor Enclosure Type
Totally Enclosed Air-Over

Description

Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/3 hp HP, Nameplate RPM 825 RPM, No. of Speeds 1, Voltage 208-230V AC, 2.1 A Full Load Amps, 48 Frame, Output Watts 250 W, 60 Hz Hz, Replacement For Mfr. No. 6303, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class F, Duty Cycle Continuous, Max. Ambient Temp. 70 Degrees C, Motor Shaft Rotation CW/CCW
