Shop CENTURY

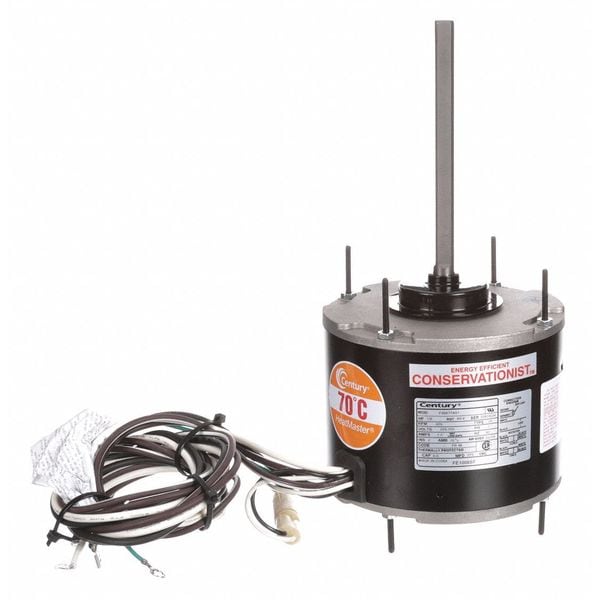

Condenser Fan Motor, 1/8 hp

  • Mfr # FE1008SF

  • Zoro # G3204415

product price:  $209.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Permanent Split Capacitor
Phase
Single
HP
1/8
RPM Range
0-1,000
No. of Speeds
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
FE1008SF
Zoro #
G3204415
UPC #
-
Country of Origin
India

Dimensions

Body Dia.
5 5/8 in
Length Less Shaft
5 1/8 in
Shaft Length
6 1/2 in
Lead Length
48 in
Overall Length
11 5/8 in
Stud Size
#8-32
Shaft Dia.
1/2 in
Mounting Stud Length
1 1/16 in
Bolt Circle Dia.
5 1/8 in
Bolt Circle Diameter
5 1/8 in
Mounting Stud Thread Size
#8-32
Frame Size
48
Body Diameter
5.6 in
Shaft Diameter
1/2 in
Wire Rope Length
11 5/8 in

Details

Motor Design
Permanent Split Capacitor
Phase
Single
HP
1/8
RPM Range
0-1,000
No. of Speeds
1
Voltage
208-230V AC
Motor Shaft Rotation
CW/CCW
Frame
48
Motor Enclosure Design
Totally Enclosed Air-Over
Motor Mounting Type
Stud
Max. Ambient Temp.
70 Degrees C
Voltage Compatibility
115/208-230V AC, 200-230V AC, 208-220/440V AC, 208-230/277V AC, 208-230/440V AC, 208-230/460V AC, 208-230V AC, 208-240V AC
Stud Quantity
4
Mounting Stud Pattern
3 5/8 in x 3 5/8 in
Hz
60 Hz
Duty
Continuous
Motor Sub Application
Condenser Fan
Item
Condenser Fan Motor
Features
Belly Band, Extended Studs Shaft and Lead End, Mounting Holes in Shell
Motor Mounting Position
All Angle
Standards
CSA Certified, UL Recognized
Motor Shaft Design
Double-Flat
Nameplate RPM
825
Motor Application
HVAC/R
Motor Bearings
Ball
Capacitor Required
Capacitor Not Included
Full Load Amps
1.0 A
Motor Service Factor
1
Motor Thermal Protection
Auto
Ins. Class
F
Duty Cycle
Continuous
Output Watts
100 W
Replacement For
Mfr. No. 6303, FE1008SU
Weight
11 lb
Usable @ 200V
Not Usable at 200V
Motor Frame Material
Steel
Usable @ 208V
Usable at 208V
Removable Base
Yes
Mounting
Stud
Mounting Position
All Angle
Nameplate Service Factor @ 60 Hz
1
Drive Type
Direct Drive
Insulation Class
F
Frequency
60 Hz
Number of Speeds
1
Shaft Design
Double Flat
Ambient Temperature - Maximum
70 Degrees C
Motor Enclosure Type
Totally Enclosed Air-Over
Full Load Current @ 60 Hz
1.0 A
Product Type
Condenser Fan Motor
Efficiency Rating
Standard Efficiency (IE1)
Sub Application
Condenser Fan
Wattage
100 W
Frame Material
Steel
Bearing Type
Ball
Includes
Removable Base
Application
Condenser Fan

Description

Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/8 hp HP, Nameplate RPM 825 RPM, No. of Speeds 1, Voltage 208-230V AC, 1.0 A Full Load Amps, 48 Frame, Output Watts 100 W, 60 Hz Hz, Replacement For Mfr. No. 6303, FE1008SU, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class F, Duty Cycle Continuous, Max. Ambient Temp. 70 Degrees C, Motor Shaft Rotation CW/CCW
