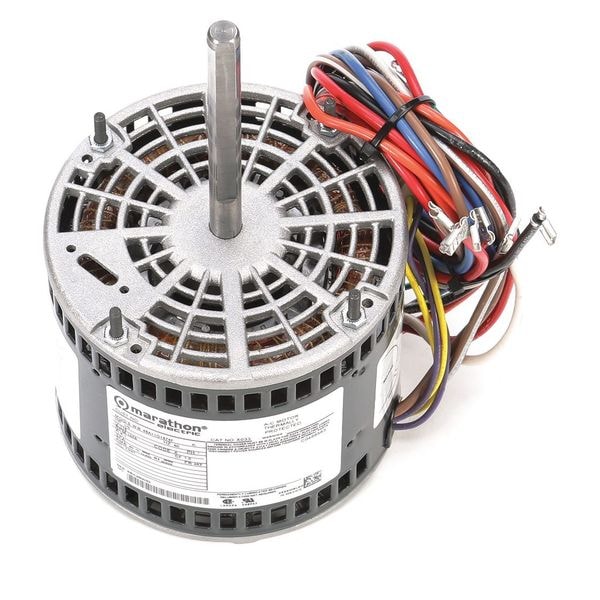

DDB Motor, PSC, OAO, 1/2 HP, 1-Ph, 1075 rpm
Mfr # 048A11O1674
Zoro # G8796514
product price:Â
$
185.99
/ea
Free Shipping & Returns
Key Features
Motor Shaft Rotation
CW/CCW
Overall Length
10 in
HP
1/2
RPM Range
1,001-1,100
Motor Design
Permanent Split Capacitor
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 048A11O1674
- Zoro #
- G8796514
- UPC #
- -
- Country of Origin
- Mexico
Dimensions
- Overall Length
- 10 in
- Mounting Stud Length
- 3/4 in
- Body Dia.
- 5 11/16 in
- Stud Size
- #10-32
- Shaft Dia.
- 1/2 in
- Shaft Length
- 5 in
- Length Less Shaft
- 5 in
- Bolt Circle Dia.
- 5 1/8 in
- Manufacturers Warranty Length
- 1 yr
- Resilient Ring Dia.
- 2 1/4 in
- Lead Length
- 30 in
- Resilient Ring Diameter
- 2 1/4 in
- Shaft Diameter
- 1/2 in
- Frame Size
- 48Y
- Mounting Stud Thread Size
- #10-32
- Body Diameter
- 5.7 in
- Bolt Circle Diameter
- 5 1/8 in
- Wire Rope Length
- 10 in
- Length
- 10 in
Description
Fan and Blower Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/2 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 4, Voltage 115V AC, 6.1 A Full Load Amps, 48Y Frame, Output Watts 370 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Stud
